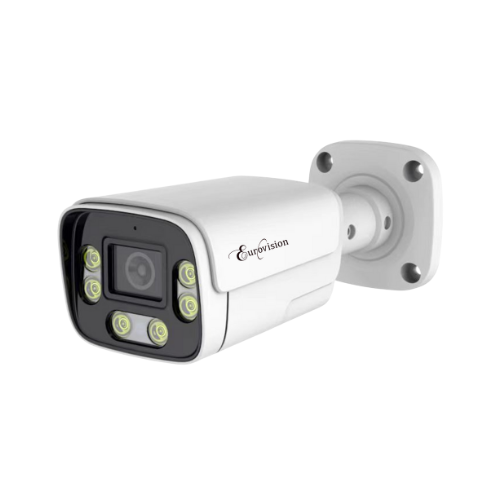

EV-IPC-24B-MBDA 4MP Human Detection Dome Camera with 50m Warm Light

EV-IPC-24B-MBDA | 4MP Human Detection Dome Camera

Brand:
Eurovision

-Camera with 50m Warm Light & Audio

The EV-IPC-24B-MBDA is a 4MP full-color IP dome camera featuring advanced human detection, 50m warm light night vision, dual audio, and H.265 encoding for intelligent security.

32 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

EV-IPC-24B-MBDA | 4MP Human Detection Dome Camera with 50m Warm Light & Audio

Product Overview

The EV-IPC-24B-MBDA is an advanced 4MP dome camera designed for intelligent, high-resolution surveillance with exceptional night vision capabilities. The EV-IPC-24B-MBDA delivers superior full-color imaging with its powerful dual-light system, combining warm light and infrared illumination to provide clear, detailed video up to 50 meters in complete darkness. Its built-in human detection algorithm accurately distinguishes people from other movement in complex environments, significantly reducing false alarms. Featuring dual audio with a built-in microphone and speaker, external PoE support for easy installation, and efficient H.265 compression, the EV-IPC-24B-MBDA offers a comprehensive security solution for properties requiring reliable, intelligent monitoring day and night.

Specification
Project Series |  EV-IPC-24B-MBDA
Specification
Basic Parameter
Model  EV-IPC-24B-MBDA
Smart Function Human detection
Main Chipset T41LQ
Image Sensor 1/2.9″, 4MP progressive scan ultra-low illumination CMOS
Effective Pixels 4MP
Min. Illumination Color：0.1Lux@F1.2; B&W：0Lux@F1.2(IR on)
Lens 2.8mm
IR Distance  Warm lights 50m, Infrared IR 70m (4pcs dual lights)
Noise Reduction 3D noise reduction
WDR DWDR (off / low/medium/high)
Mirror Off / horizontal mirroring / vertical mirroring / 180 ° rotation
Image Setting Brightness/contrast/sharpness/saturation/chroma
Human Detection
Responding Speed ≤1s
Maximum Detection Frame Rate 5fps/s (color image)
Detection Area Support specified area, default full screen
Shielded Area Support 4 areas setting
Upload Method Private protocol upload
Trigger Method Video trigger
Video and Audio Coding
Encoding Format S265/H.265/H.264
Coding Characteristics Main stream: 2560*1440@25fps, 2304*1296@25fps, 1920*1080@25fps, Sub stream: D1(720*576), VGA(640*480), Q720P(640*360)
Video Bit Rate Fixed bit rate, variable bit rate(1280kbps-4Mbps)
Video Type Composite stream/video stream
Audio Coding Standard G.711U/64Kbps
Network Function
Network Interface 1*RJ45 10M/100M self-adaptive LAN port
Network Protocol TCP/IP, UDP, HTTP, DHCP, RTSP, NTP
Interface Protocol ONVIF
Port
Network Interface RJ45 10M/100M network adaptive
PoE External PoE
Audio Built-in Mic & Speaker
General
Operation T/H  – 20°C ~ 50°C / 0﹪-90﹪
Waterproof /
Power Supply DC12V / PoE
Power Consumption <10W (MAX)
Dimension (mm) Equipment: 91(H)*Φ107(D)mm
Packing:  120mm(W)X100mm(H)X120mm(L)
Weight/PCS (g) N.W.: 180g    Packing: 252g
Outside Carton 36pcs/carton; 510mmX380mmX330mm; Weight: 10.1kg
