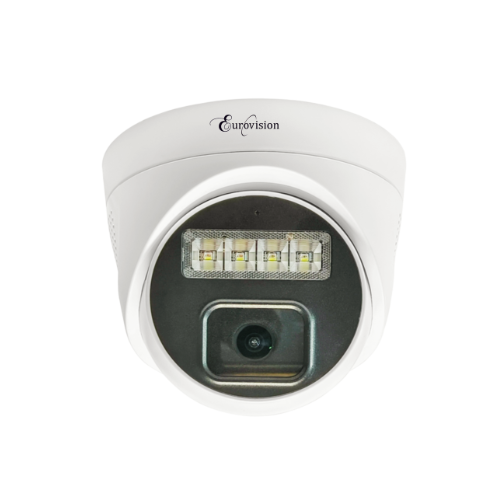

EV-IPC-FC20DMS-V4 4MP Human Detection Dome Camera with Warm Light

EV-IPC-FC20DMS-V4 | 4MP Human Detection IP Camera

Brand:
Eurovision

-Warm Light PoE Dome Camera

The EV-IPC-FC20DMS-V4 is a 4MP full-color IP dome camera featuring advanced human detection, 25m warm light night vision, dual audio, and H.265 encoding for efficient security monitoring.

30 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

EV-IPC-FC20DMS-V4 | 4MP Human Detection Warm Light PoE Dome Camera

Product Overview

The EV-IPC-FC20DMS-V4 is a high-performance 4MP dome camera engineered for intelligent, reliable surveillance. The EV-IPC-FC20DMS-V4 delivers exceptional full-color clarity 24/7, thanks to its powerful warm light and infrared night vision that illuminates up to 25 meters. Its standout feature is a built-in human detection algorithm, which accurately distinguishes people from other movement in complex environments, drastically reducing false alarms. Supporting efficient H.265 encoding and external PoE for easy installation, this camera is an ideal solution for safeguarding homes, businesses, and perimeter areas with smart, efficient, and crystal-clear monitoring.

Project Series | EV-IPC-FC20D-DMS-V3
Specification
Basic Parameter
Model EV-IPC-FC20D-DMS-V3
Smart Function Human detection
Main Chipset T41LQ
Image Sensor 1/2.9″, 4MP progressive scan ultra-low illumination CMOS
Effective Pixels 4MP
Min. Illumination Color：0.1Lux@F1.2; B&W：0Lux@F1.2(IR on)
Lens 2.8mm
IR Distance  Warm lights 25m, Infrared IR 30m (4pcs dual lights)
Noise Reduction 3D noise reduction
WDR DWDR (off / low/medium/high)
Mirror Off / horizontal mirroring / vertical mirroring / 180 ° rotation
Image Setting Brightness/contrast/sharpness/saturation/chroma
Human Detection
Responding Speed ≤1s
Maximum Detection Frame Rate 5fps/s (color image)
Detection Area Support specified area, default full screen
Shielded Area Support 4 areas setting
Upload Method Private protocol upload
Trigger Method Video trigger
Video and Audio Coding
Encoding Format S265/H.265/H.264
Coding Characteristics Main stream: 2560*1440@25fps, 2304*1296@25fps, 1920*1080@25fps, Sub stream: D1(720*576), VGA(640*480), Q720P(640*360)
Video Bit Rate Fixed bit rate, variable bit rate(1280kbps-4Mbps)
Video Type Composite stream/video stream
Audio Coding Standard G.711U/64Kbps
Network Function
Network Interface 1*RJ45 10M/100M self-adaptive LAN port
Network Protocol TCP/IP, UDP, HTTP, DHCP, RTSP, NTP
Interface Protocol ONVIF
Port
Network Interface RJ45 10M/100M network adaptive
PoE External PoE
Audio Built-in Mic & Speaker
General
Operation T/H  – 20°C ~ 50°C / 0﹪-90﹪
Waterproof /
Power Supply DC12V / PoE
Power Consumption <10W (MAX)
Dimension (mm) Equipment: 91(H)*Φ107(D)mm
Packing:  120mm(W)X100mm(H)X120mm(L)
Weight/PCS (g) N.W.: 180g    Packing: 252g
Outside Carton 36pcs/carton; 510mmX380mmX330mm; Weight: 10.1kg
