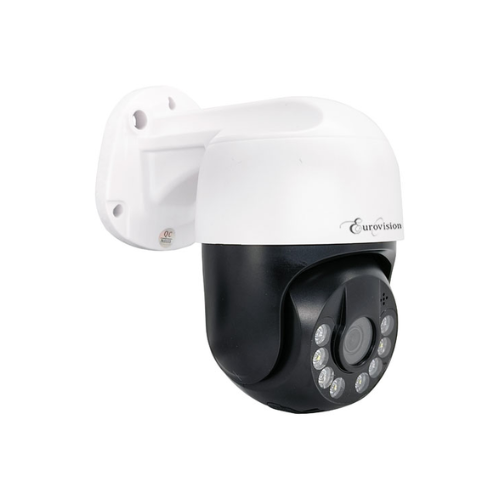

EV-IPC101-X2 3MP Outdoor PT IP Camera with Human Detection & 40m Night Vision
EV IPC101 X2 3MP Outdoor PT IP Camera with Human Detection 40m Night Vision 1
  • EV-IPC101-X2 3MP Outdoor PT IP Camera with Human Detection & 40m Night Vision
  • EV IPC101 X2 3MP Outdoor PT IP Camera with Human Detection 40m Night Vision 1

EV-IPC101-X2 | 3MP Outdoor PT IP Camera

Brand:
Eurovision

-with Human Detection & 40m Night Vision

The EV-IPC101-X2 is a 3MP outdoor pan-tilt IP camera featuring human detection, 40m dual-light night vision, IP65 rating, and built-in audio for comprehensive security.

85 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

EV-IPC101-X2 | 3MP Outdoor PT IP Camera with Human Detection & 40m Night Vision

Product Overview

The EV-IPC101-X2 is a versatile 3MP outdoor pan-tilt camera designed for dynamic surveillance with advanced detection capabilities. The EV-IPC101-X2 delivers high-quality 3MP resolution imaging and features accurate human detection technology that intelligently distinguishes people from other movement, reducing false alarms significantly. With its pan-tilt functionality, this camera provides flexible coverage of large outdoor areas, while the powerful dual-light system with 8 LEDs ensures clear night vision up to 40 meters. The EV-IPC101-X2 is built with an IP65 weatherproof rating for reliable outdoor performance and includes built-in microphone and speaker for two-way audio communication. Supporting both DC12V and external PoE power options, along with efficient S265 compression, this camera is ideal for monitoring driveways, yards, commercial perimeters, and any outdoor space.

Specification
Model EV-IPC101-X2
Smart Function Human detection
Main Chipset T31N
Image Sensor 1/2.9″, 3MP progressive scan ultra-low illumination CMOS GC4053
Effective Pixels 3MP
Min. Illumination Color：0.1Lux@F1.2; B&W：0Lux@F1.2(IR on)
Lens F1.6 4mm
IR Distance 30-40M (8 lamps)
Noise Reduction 3D noise reduction
WDR DWDR (off / low/medium/high)
Mirror Off / horizontal mirroring / vertical mirroring / 180 ° rotation
Image Setting Brightness / contrast / sharpness / saturation / chroma
Human Detection
Responding Speed ≤1s
Maximum Detection Frame Rate 5fps/s (color image)
Detection Area Support specified area, default full screen
Shielded Area Support 4 areas setting
Upload Method Private protocol upload
Trigger Method Video trigger
Video and Audio Coding
Encoding Format S265/H.265/H.264
Coding Characteristics Main stream: 3MP 2304X1296@20fps, 2MP 1920×1080@25fps
Sub stream: D1(720*576), VGA(640*480), Q720P(640*360)
Video Bit Rate Fixed bit rate, variable bit rate(16Kbps-4000kbps)
Video Type Composite stream/video stream
Audio Coding Standard G.711U/64Kbps
Network Function
Network Interface 1*RJ45 10M/100M self-adaptive LAN port
Network Protocol TCP/IP，HTTP， DHCP，RTSP
Interface Protocol ONVIF
Port
Network Interface RJ45 10M/100M network adaptive
PoE External PoE
Audio Built-in Mic & Speaker
TF Slot /
General
Operation T/H  – 20°C ~ 50°C / 0﹪-90﹪
Waterproof IP65
Power Supply DC12V / PoE
Power Consumption <10W (MAX)
Dimension (mm) Equipment: 90(W)X140(H)X140(L)mm
Packing:  165mm(W)X125mm(H)X165mm(L)
Weight/PCS (g) N.W.: 400g    Packing: 490g
Outside Carton 27pcs/carton; 510mm(W)X400mm(H)X510mm(L); Weight: 14kg
