EV-IPC15DMS 3MP Dual Light PoE Camera
-Human Detection & Dual Audio
The EV-IPC15DMS is a 3MP dual-light PoE camera featuring human detection, built-in mic & speaker, 30m IR, and IP67 rating for advanced 24/7 surveillance.
27 people are viewing this product right now

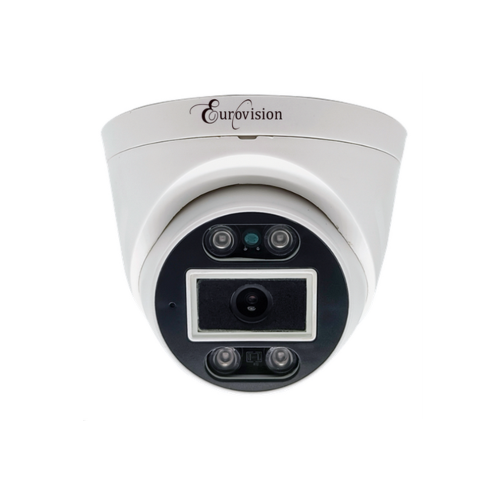

EV-IPC15DMS 3MP Dual Light PoE Camera with Human Detection & Dual Audio
Product Overview
The EV-IPC15DMS Eurovision camera delivers intelligent, high-resolution security with dual illumination technology. Key features of the EV-IPC15DMS include:
-
3MP high-resolution imaging (2304×1296) at 25fps with Smart H.265+ compression
-
Dual-light night vision with warm white LEDs (20m) and IR LEDs (30m) for full-color or B/W footage
-
Advanced human detection with a fast ≤1s response time and configurable detection areas
-
Built-in microphone and speaker for comprehensive audio monitoring and two-way communication
-
Power over Ethernet (PoE) for simplified installation and IP67 weatherproof durability
-
ONVIF compatibility ensures seamless integration with a wide range of recording systems
Ideal for perimeter security, retail environments, and smart home systems, the EV-IPC15DMS provides reliable, all-weather monitoring.
| Specification | |
| Basic Parameter | |
| Model | EV-IPC15DMS |
|
Smart Function |
Human detection, Tampering, Watermark, Illegal Access Detection |
| Main Chipset | T35N |
| Image Sensor | 1/2.8″, 2MP Progressive Scan CMOS |
| Effective Pixels | 3MP |
| Min. Illumination | Color：0.01Lux@F1.6; B&W：0Lux (IR on) |
| Lens | F1.6 4mm |
| IR Distance | Worm Led Full Color 20M -IR LED 30M |
| Day & Night | IR Cut Filter (ICR), Dual Light IR Auto-switching |
| Noise Reduction | 3D noise reduction |
| WDR | DWDR (off / low / medium / high) |
| Mirror | Off / horizontal mirroring / vertical mirroring / 180 ° rotation |
| Image Setting | Brightness / contrast / sharpness / saturation / chrome |
| Human Detection | |
| Responding Speed | ≤1s |
| Maximum Detection Frame Rate | 5fps/s (color image) |
| Detection Area | Support specified area, default full screen |
| Shielded Area | Support 4 areas setting |
| Upload Method | Private protocol upload |
| Trigger Method | Video trigger |
| Video and Audio Coding | |
| Encoding Format | S265/ Smart H.265+/H.265/H.264 |
|
Coding Characteristics |
Main stream: 3MP 2304X1296@25fps, 2MP 1920×1080@25fps
Sub stream:D1(720*576), VGA(640*480), Q720P(640*360) |
| Video Bit Rate | Fixed bit rate, variable bit rate(1280kbps-4Mbps) |
| Video Type | Composite stream/video stream |
| Audio Coding Standard | G.711U/64Kbps |
| Network Function | |
| Network Interface | 1*RJ45 10M/100M self-adaptive LAN port |
| Network Protocol | TCP/IP, UDP, HTTP, HTTPS, FTP, DNS, RTP, DHCP, RTSP, NTP |
| Interface Protocol | ONVIF |
| Port | |
| Network Interface | RJ45 10M/100M network adaptive |
| POE | Built-in PoE |
| Audio | Built-in Mic |
| General | |
| Operation T/H | – 20°C ~ 50°C / 0﹪-90﹪ |
| Waterproof | IP67 |
| Power Supply | DC12V / PoE |
| Power Consumption | <10W (MAX) |
|
Dimension (mm) |
Equipment: 91.01(W)×96.05(H)×193.21(L)mm (not with bracket) Packing: 140mm(W)×115mm(H)255mm(L) |
| Weight/PCS (g) | N.W.: 480g Packing: 540g |
| Outside Carton | 24pcs/carton; 500mm×440mm×490mm; Weight: 13.1kg |
