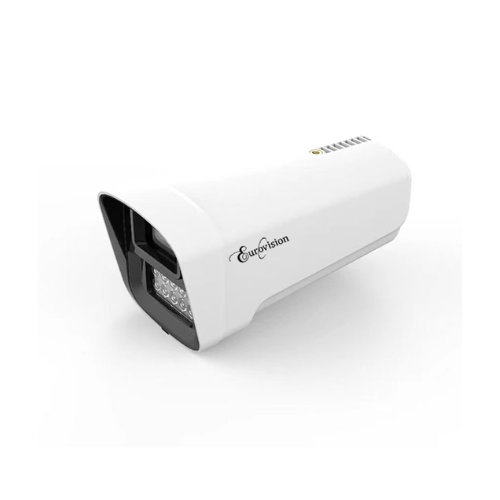

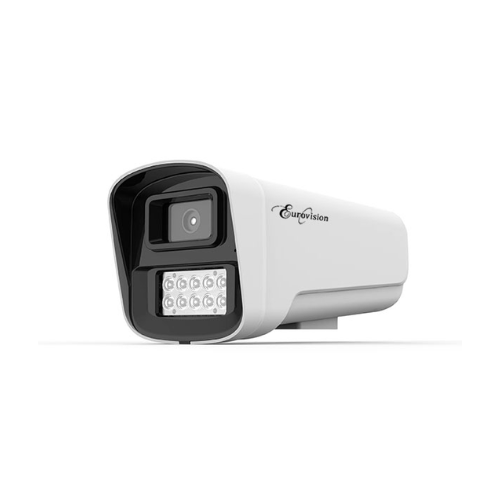

EV-IPC22B-PE 3MP Outdoor Bullet Camera with Human Detection & Dual Light Vision
EV IPC22B PE 3MP Outdoor Bullet Camera with Human Detection Dual Light Night Vision 1
  • EV-IPC22B-PE 3MP Outdoor Bullet Camera with Human Detection & Dual Light Vision
  • EV IPC22B PE 3MP Outdoor Bullet Camera with Human Detection Dual Light Night Vision 1

EV-IPC22B-PE | 3MP Outdoor Bullet Camera

Brand:
Eurovision

-with Human Detection & Dual Light Night Vision

The EV-IPC22B-PE is a 3MP outdoor bullet IP camera featuring human detection, 50m dual light night vision, built-in PoE, and IP67 weatherproof rating for reliable security.

64 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

EV-IPC22B-PE | 3MP Outdoor Bullet Camera with Human Detection & Dual Light Night Vision

Product Overview

The EV-IPC22B-PE is a advanced 3MP outdoor bullet camera designed for intelligent surveillance with exceptional night vision capabilities. The EV-IPC22B-PE delivers high-quality imaging with its 3MP resolution and advanced dual-light system that provides full-color night vision up to 40 meters and infrared illumination extending to 50 meters. This camera features accurate human detection technology to reduce false alarms and comes with built-in PoE for simplified installation. With its IP67 weatherproof rating, built-in microphone, and ONVIF compatibility, the EV-IPC22B-PE offers a comprehensive security solution for perimeter protection, parking areas, and outdoor monitoring where reliable detection and clear imaging are essential.

Specification
Specification
Basic Parameter


Model



Model EV-IPC22B-PE
Smart Function Human detection, Watermark, Tampering, Illegal Access.
Main Chipset T35N
Image Sensor 1/2.8″, 2MP Progressive scan CMOS
Effective Pixels 3MP
Min. Illumination Color：0.01Lux@F1.6; B&W：0Lux (IR on)
Lens F1.6 4mm
IR Distance Worm Led Full Color 40M -IR LED 50M
Day & Night IR Cut Filter (ICR), Dual Light IR Auto-switching
Noise Reduction 3D noise reduction
WDR DWDR (off / low / medium / high)
Mirror Off / horizontal mirroring / vertical mirroring / 180 ° rotation
Image Setting Brightness / contrast / sharpness / saturation / chrome
Human Detection
Responding Speed ≤1s


Maximum Detection Frame Rate



5fps/s (color image)
Detection Area Support specified area, default full screen
Shielded Area Support 4 areas setting
Upload Method Private protocol upload
Trigger Method Video trigger
Video and Audio Coding
Encoding Format S265/H.265/H.264


Coding Characteristics

 Main stream: 3MP 2304X1296@25fps, 2MP 1920×1080@25fps

Sub stream:D1(720*576), VGA(640*480), Q720P(640*360)
Video Bit Rate Fixed bit rate, variable bit rate(1280kbps-4Mbps)
Video Type Composite stream/video stream
Audio Coding Standard G.711U/64Kbps
Network Function
Network Interface 1*RJ45 10M/100M self-adaptive LAN port
Network Protocol TCP/IP, UDP, HTTP, HTTPS, FTP, DNS, RTP, DHCP, RTSP, NTP


Interface Protocol



ONVIF



Port
Network Interface RJ45 10M/100M network adaptive
POE Built-in PoE
Audio Built-in Mic
General
Operation T/H – 20°C ~ 50°C / 0﹪-90﹪
Waterproof IP67
Power Supply DC12V / PoE
Power Consumption <10W (MAX)


Dimension (mm)

 Equipment: 91.01(W)×96.05(H)×193.21(L)mm (not with bracket) Packing:  140mm(W)×115mm(H)255mm(L)
Weight/PCS (g) N.W.: 480g   Packing: 540g
Outside Carton 24pcs/carton; 500mm×440mm×490mm; Weight: 13.1kg
