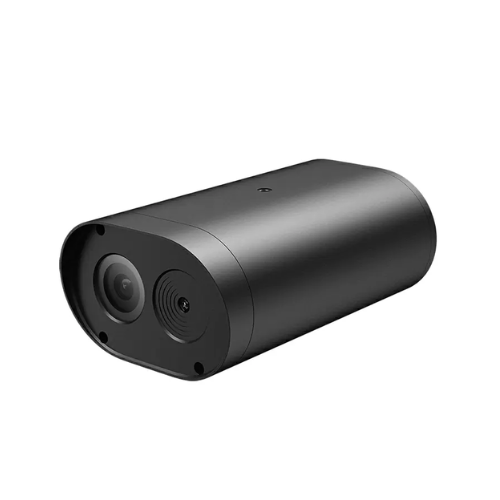

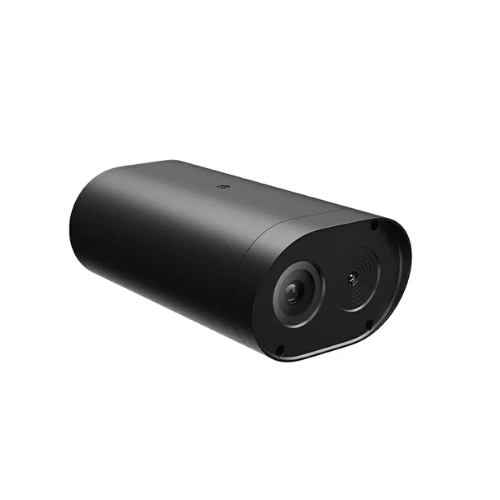

JVS-FPT-DL18 Fire Prevention Thermal Camera with Temperature Monitoring & Alarm
JVS FPT DL18 Fire Prevention Thermal Camera with Over Temperature Alarm 40m Detection 1
  • JVS-FPT-DL18 Fire Prevention Thermal Camera with Temperature Monitoring & Alarm
  • JVS FPT DL18 Fire Prevention Thermal Camera with Over Temperature Alarm 40m Detection 1

JVS-FPT-DL18 | Fire Prevention Thermal Camera

Brand:
Jovision

-with Over-Temperature Alarm & 40m Detection

The JVS-FPT-DL18 is a fire prevention thermal camera featuring 256×192 thermal imaging, 40m temperature detection, 10 monitoring areas, and automatic alarm for early fire warning.

27 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

JVS-FPT-DL18 | Fire Prevention Thermal Camera with Over-Temperature Alarm & 40m Detection

Product Overview

The JVS-FPT-DL18 is a professional fire prevention thermal camera designed for early fire detection and temperature monitoring in industrial and commercial environments. The JVS-FPT-DL18 combines a 256×192 uncooled VOX thermal sensor with a 2MP visible camera, providing dual imaging capabilities for comprehensive monitoring and verification. With temperature detection ranging from -10°C to +550°C and a 40-meter monitoring distance, this system offers precise over-temperature warnings and automatic alarms for potential fire hazards. The JVS-FPT-DL18 supports up to 10 customizable detection areas, each with individual settings for name, emissivity, distance, and alarm thresholds. Featuring built-in speaker for voice alerts, HDMI output for standalone operation, and support for various intelligent analysis including region intrusion.

Specifications

Model JVS-FPT-DL18
Display
Sensor Image Sensor:1/2.9″ CMOS SensorThermal Sensor:Uncooled VOX Sensor
Video Resolution Camera：1920x1080Thermal：704×576
Effective Pixels 2.0MP
Compression Standard H.265/H.264
Frame Rate Default 25fps, MAX 30 fps
Bit Rate 204 Kbps~8Mbps adjustable
Camera
Lens 6mm,M12
 FOV H: 53.7°, V:28.8° ,D:62.0°
Function
Exposure Control Support
White Balance Auto
Image Enhancement BLC/HLC/3D DNR/DWDR/Defog
Advanced OSD Support OSD large font function, OSD and time to set the position separately

,8 lines x 48 characters
Privacy Mask Support 8 Rectangle Areas
Motion Detection Support
Image Setting Rotate, Saturation, Brightness, Contrast, Sharpness
Day and night function Full color, black and white is not supported
Intelligent Analysis Temperature  Alarm ,Region Intrusion, Line Crossing,
Alarm Method  Email Alarm, Client Alarm, Voice Alarm
Remote Operation System , Audio and video , Image , Alarm , Network management,Intelligent Analysis
Expansion Interface Support Audio Input, RS485, HDMI Output, 1 Alarm Input, 3 Alarm Output
Temperature  Alarm
Temperature Range -10℃~+550℃
Thermal Focus 3.2mm
Thermal 256×192
 FOV 56×42
Temperature Area 10 Detection Areas
Temperature Distance 2~40m
Over-Temperature Alarm Support
Network
Ethernet 10M / 100M Ethernet ,1 RJ45
Stream 2x Streams(Camera)
Protocols HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,DHCP,DNS
ONVIF ONVIF Standard
Network Transmission CloudSEE 2.0
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up to 13 Users
App Support iOS/Android
General
Power Supply DC12V
Power Consumption <5W
Working Temperature -20°C ~ 60°C
Working Humidity 10% ~ 90% Rh
Material Metal
Dimensions (WxHxD) 115x75x207mm)
Weight 960g
Waterproof IP20

Temperature Accuracy

Distance Target Target Size Temperature Accuracy
2 ≥1.66cm*1.66cm ±1℃
5 ≥4.15cm*4.15cm ±2℃
10 ≥8.30cm*8.30cm ±3℃
20 ≥16.6cm*16.6cm ±3℃
30 ≥24.9cm*24.9cm ±3℃
40 ≥33.2cmx33.2cm ±3℃

JVS-FPT-DL18 Fire Prevention Thermal Camera.pdf
