JVS-N430K-SDL 4K Metal Full-Color Eyeball Camera with Human Detection

JVS-N430K-SDL | 4K Metal Full-Color Eyeball Camera

Brand:
Jovision

-Camera with Human Detection & PoE

The JVS-N430K-SDL is a 4K metal eyeball network camera featuring human detection, full-color night vision, IP66 rating, and internal PoE for superior 8MP surveillance.

66 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

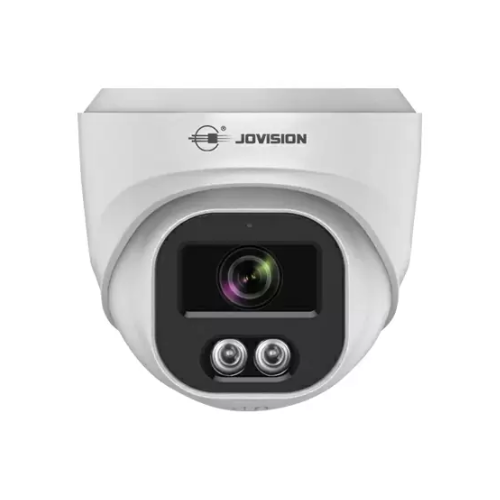

JVS-N430K-SDL | 4K Metal Full-Color Eyeball Camera with Human Detection & PoE

Product Overview

The JVS-N430K-SDL is a premium 4K metal eyeball network camera designed for high-resolution surveillance with robust construction and intelligent detection capabilities. The JVS-N430K-SDL delivers exceptional 3840×2160 resolution at 8MP, providing crystal-clear imagery for detailed monitoring. This camera features a durable metal housing with IP66 weatherproof rating, ensuring reliable performance in various environmental conditions. With combined IR and warm LED illumination, the JVS-N430K-SDL offers full-color night vision up to 40 meters, maintaining vibrant video quality around the clock. The camera’s advanced human detection technology accurately identifies human movement, reducing false alarms and enhancing security efficiency. Supporting internal PoE for easy installation, built-in microphone for audio monitoring, and H.265 compression for efficient bandwidth usage, this 4K camera is ideal for commercial properties.

Specifications
Video
Image Sensor 1/3” CMOS
Max Resolution 3840×2160
Effective Pixels 8MP
Compression Standard H.265/H.264
Frame Rate 15 fps
Bit Rate 682Kbps～5461Kbps
SNR (dB) 52dB
Min. Illumination 0Lux   (IR ON)
Lens
Lens 4mm,M12
FOV H:   78.5°, V: 42.8° D: 92.6°
IR-LEDs 28µx1 LED
IR-Distance Up to 40 Meters
Function
Exposure Control Support
White Balance Auto
Image Enhancement BLC/HLC
Privacy Mask Support 4 Rectangle Areas
Image Setting Rotate, Saturation, Brightness, Contrast, Sharpness
Day and night   function Day And Night Automatic Switching
Intelligent   Analysis Support Region Intrusion, Line Crossing, Human   Detection
Alarm Method Email Alarm
Remote Operation System, Stream, Alarm, Network Management
Expansion   Interface N/A
Network
Ethernet 10M/100M Ethernet ,1 RJ45
Stream 2x   Streams
Protocols TCP/IP,RTSP,RTP,HTTP,DNS,DDNS,DHCP,FTP,NTP,UPNP
ONVIF ONVIF   2.4
Network Transmission CloudSEE 2.0
Browser  IE8.0 And Above   (Device Embedded Web Server), Edge,Chrome,Safari Browser Browsing
User Up   to 13 Users
General
Power Supply DC12V or PoE
Power Consumption <3W   (During Day); <6W (At Night With IR)
Working Temperature -20°C ~ 60°C
Working Humidity 0% ~ 90% Rh
Material Metal
Dimensions (WxHxD) Φ96x93mm
Weight 300g
Waterproof IP66

JVS-N430K-SDL 4K Metal Full Color Eyeball Network Camera.pdf
