Key Features
- Resolution 2560×1440@25fps
- Ingress Protection IP66
- PoE IEEE 802.3af
- IR-LED, Up to 70 Meters
- Supports CloudSEE APP on iOS/Android
- ONVIF 2.4, Compatible with ONVIF Recorder
Have any Questions?
Feel free to Get in touch

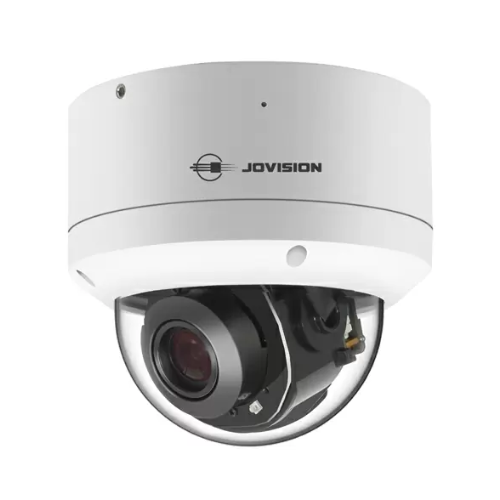

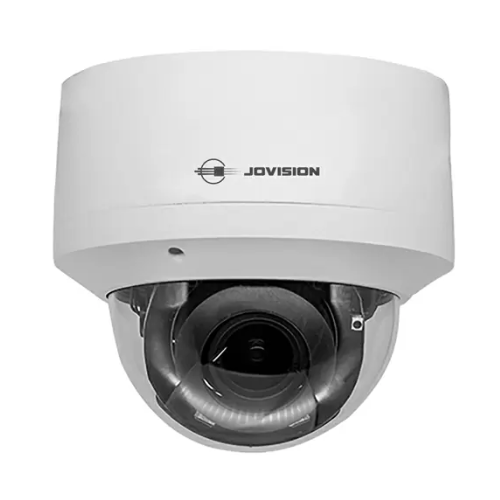

JVS-N433-Z5 | 4MP Vandalproof PTZ Dome Camera
-with 70m IR & Electric Zoom
The JVS-N433-Z5 is a 4MP vandalproof PTZ dome camera featuring 70m IR night vision, electric zoom, IP66 rating, and metal construction for secure area monitoring.
15 people are viewing this product right now
Specifications
| Video | |
| Image Sensor | 1/ 2.9” CMOS |
| Max Resolution | 2560×1440 |
| Effective Pixels | 4.0MP |
| Compression Standard | H.265 |
| Maximum Frame Rate | 4.0MP@25fps |
| SNR(dB) | 39dB |
| Bit Rate | 128Kbps ~ 6Mbps |
| Illumination | 0Lux (IR ON) |
| Lens | |
| Lens | 2.7mm-13.5mm Electric zoom |
| IR-LEDs | 2x IR-LEDs |
| IR-Distance | Up to 70 Meters |
| Function | |
| Motion Detection | Support |
| Email Alert | Support |
| Day& Night | Support |
| Recording | Support (NVR, Windows PC, Smartphone) |
| DHCP | Support |
| Pan/Tilt | Support Pan 360° Tilt 90° |
| Audio Input | Support Built-in Mic |
| Audio Codec | Support (G711A/G711U) |
| SD-Card | Support（256GB） |
| Privacy Mask | Support up 8 areas |
| Exposure Control | Support |
| Image Adjustment | Support |
| Auto. White Balance | Support |
| Image Rotation | Support (Mirror/Flip) |
| Intercom | Not Supported |
| FTP | Not Supported |
| Network | |
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Stream | 2x Streams |
| Wi-Fi | Not Supported |
| LAN | Support |
| ONVIF | ONVIF 2.4 |
| User | Up to 13 Users |
| Browser | IE , Chrome, Edge |
| Smart Phone | iOS/Android |
| General | |
| Dimensions | φ110×110 (mm) |
| Weights | 640g |
| Material | Metal |
| Working Temperature | -20°C～60°C |
| Humidity | RH 10%～90% |
| Power Supply | DC12V/1.5A, PoE (IEEE 802.3af) |
| Consumption | Day ≦5W Night ≦ 9W |
| Waterproof | IP66 |
JVS-N433-Z5 | 4MP Vandalproof PTZ Dome Camera with 70m IR & Electric Zoom
Product Overview
The JVS-N433-Z5 is a robust 4MP vandalproof PTZ dome camera designed for high-security applications requiring durable construction and advanced surveillance capabilities. The JVS-N433-Z5 delivers high-quality 2560×1440 resolution at 25fps with a powerful 2.7mm-13.5mm electric zoom lens that provides flexible viewing options from wide-angle to detailed close-ups. Built with heavy-duty metal construction and IP66 weatherproof rating, this camera offers exceptional resistance to vandalism, tampering, and harsh environmental conditions. With impressive 70-meter infrared night vision and 360° pan/90° tilt capabilities, the JVS-N433-Z5 ensures comprehensive area coverage day and night. Featuring H.265 compression for efficient bandwidth usage, built-in microphone for audio monitoring, and support for microSD storage up to 256GB, this vandal-resistant PTZ dome is ideal for prisons, transportation hubs.
