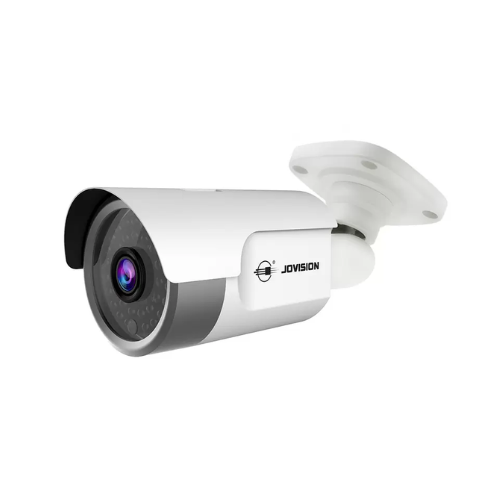

JVS-N510-YWS 5MP Metal Bullet Camera with 30m IR Night Vision & IP66 Rating

JVS-N510-YWS 5MP Metal Bullet IP Camera

Brand:
Jovision

-30m IR Night Vision & IP66 Rating

The JVS-N510-YWS is a rugged 5MP metal bullet camera featuring 18x IR LEDs (30m range), H.265 compression, and IP66 weatherproof rating for professional outdoor surveillance.

18 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

JVS-N510-YWS 5MP Metal Bullet IP Camera with 30m IR Night Vision & IP66 Rating

Product Overview

The JVS-N510-YWS delivers high-performance 5MP (2592×1944) security in a durable metal housing:

  • 5MP ultra-HD resolution @20fps with H.265 compression

  • Powerful 18x IR array for 30m night vision (0Lux capability)

  • 104° wide viewing angle for maximum coverage

  • IP66-rated all-metal weatherproof construction

  • PoE or DC12V powered for flexible installation

  • ONVIF 2.4 compliant for third-party system integration

With motion detection, privacy masking, and CloudSEE mobile app support, the JVS-N510-YWS is ideal for perimeter security, parking lots, and industrial monitoring.

Model JVS-N510-YWS
Video
Image Sensor 1/ 3” CMOS
Max Resolution 2592×1944
Effective Pixels 5.0MP
Compression Standard H.265
Maximum Frame Rate 5.0MP@20fps
SNR(dB) 38.6dB
Bit Rate 128Kbps～8Mbps
Illumination 0Lux (IR ON)
Lens
Lens 4mm
Viewing Angle 4mm: 104°
IR-LEDs 14µ x 18 LEDs
IR-Distance Up to 30 Meters
Function
Motion Detection Support
Email Alert Support
Day& Night Support
Recording Support (NVR, Windows PC, Smartphone)
DHCP Support
FTP Not Supported
Pan/Tilt Not Supported
SD-Card Not Supported
Privacy Mask Support up 4 areas
Exposure Control Support
Image Adjustment Support
Auto. White Balance Support
Image Rotation Support (Mirror/Flip)
Network
Ethernet 10M/100M Ethernet, RJ45 Port
Protocols HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Stream 2x Streams
Wi-Fi Not Supported
ONVIF ONVIF 2.4
User Up to 13 Users
Browser IE8+, Chrome18+ ~ 42-
Smart Phone iOS/Android
General
Dimensions(W*H*D) 215x100x105mm
Weights 480g
Material Metal
Working Temperature -20°C～60°C
Humidity RH 10%～90%
Power Supply DC12V/1A, PoE IEEE 802.3af
Consumption Day ≦2W; Night ≦8W
Waterproof IP66

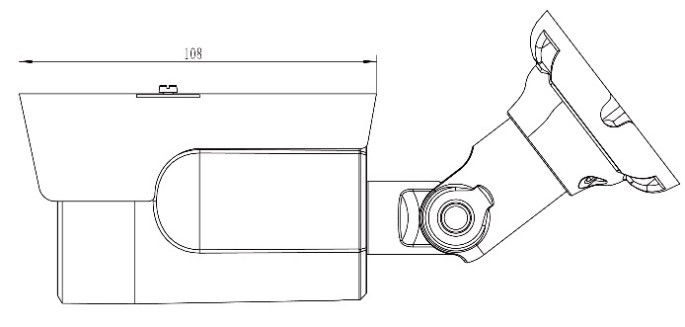

Dimensions (mm)





JVS-N510-YWS 5MP Metal Bullet IP Camera.pdf
