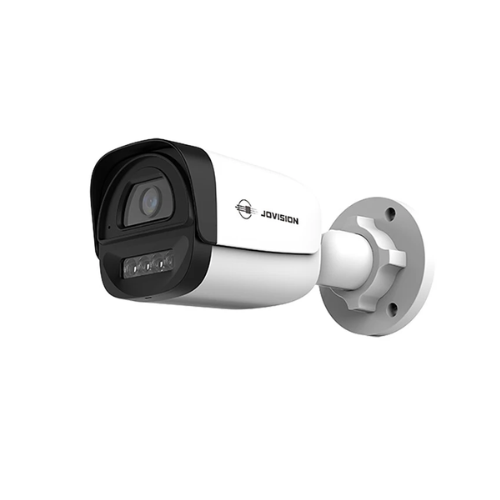

JVS-N515-ADL 5.0MP Dual Light PoE Camera with 40m Night Vision & IP66 Rating

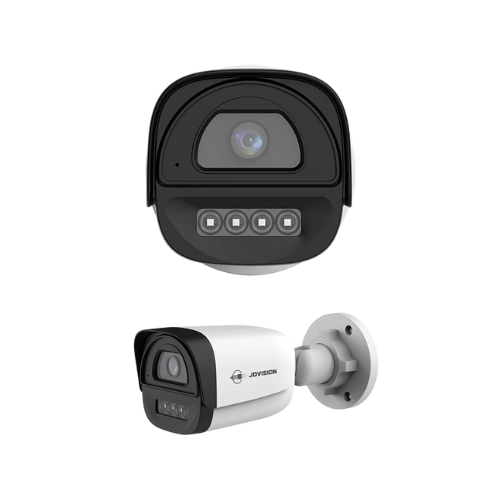

JVS N515 ADL 5.0MP Dual Light PoE Security Camera with Human Detection IP66 Rating 2nd Image
  • JVS-N515-ADL 5.0MP Dual Light PoE Camera with 40m Night Vision & IP66 Rating
  • JVS N515 ADL 5.0MP Dual Light PoE Security Camera with Human Detection IP66 Rating 2nd Image

JVS-N515-ADL 5.0MP Dual Light PoE Security Camera

Brand:
Jovision

-Human Detection & IP66 Rating

The JVS-N515-ADL is a 5.0MP dual-light PoE camera featuring human detection, built-in mic, IP66 waterproofing, and 40m night vision – perfect for high-resolution surveillance.

78 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

JVS-N515-ADL 5.0MP Dual Light PoE Security Camera with Human Detection & IP66 Rating

Product Overview

The JVS-N515-ADL delivers superior 5.0MP (2560×1792) resolution with advanced dual-light technology (4 white LEDs + 4 IR LEDs) for exceptional day/night monitoring. This professional-grade PoE camera offers:

  • 5.0MP ultra-HD resolution with H.265+ compression

  • Smart dual illumination (0Lux night vision capability)

  • Humanoid motion detection with alarm triggers

  • Built-in microphone for audio verification

  • IP66 weatherproof metal housing

  • PoE-powered for simplified installation

With 40m IR distance, 83.8° horizontal FOV, and ONVIF/CloudSEE 2.0 compatibility, the JVS-N515-ADL excels in demanding environments like parking lots, perimeter security, and commercial properties.

Video
Image Sensor 1/2.9″ CMOS Sensor
Max Resolution 2560×1792
Effective Pixels 5.0MP
Compression Standard H.264/H.265
Framerate 20fps
Bitrate Main Stream: 256Kbps ~ 4Mbps

Sub Stream: 68Kbps~1024Kbps
SNR (dB) 39dB
Min. Illumination 0Lux (light ON)
Lens
Interface Type M12
Lens 3.6mm
FOV 3.6mm:H   83.8°, V 42.7°, D 100.1°
Function
Audio Codec G.711U/G.711A (default)
Exposure Control Auto
White Balance Auto
Gain Control Auto
Digital 3D Noise Reduction Support
OSD Information Setting Large font OSD, OSD flashing on alarm, OSD position settings
SNTP Support
Schedule Reboot Support
Smart Defog Support
Motion Detection Support (Humanoid)
Image Setting Support Saturation, Brightness, Contrast, Sharpness   adjustment
Image Style Standard, Soft, Transparent
Day and Night Function Auto, Always Black & White, Always Color, Scheduled   Color
Privacy Mask Support up 8 areas
Electronic Screen Setting Support maximum and minimum exposure time setting
Night Vision Optimization Support
DWDR Support
Screen Settings Screen mirroring, Screen flipping
IP Adaptation Support automatic adaptation of IP address (Optional)
Alarm Method Email Alarm, Client Alarm
Remote Operation System, Audio and Video, Image, Alarm, Network management
Audio Function Built-in Mic
Network
Ethernet 10/100Mbps Ethernet
Stream 2x   Streams
Network Protocols HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIF Standard ONVIF
Network Transmission CloudSEE 2.0
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up to 13 Users
App Support iOS/Android
General
Lights 4 White LEDs + 4 IR LEDs
IR Distance Up to 40 Meters
Waterproof Level IP66
Power Supply DC12V or PoE (IEEE802.3af)
Power Consumption <3W (During Day); <6W (At Night)
Working Temperature -20°C ~ 60°C
Working Humidity 10% ~ 90% Rh
Color/Material Black and White/Plastic + Metal
Dimensions (WxHxD) 67x74x201mm
Weight 250g
Installation Method Wall or ceiling mount

JVS-N515-ADL 5.0MP Dual Light Video  Audio PoE Network Camera.pdf
