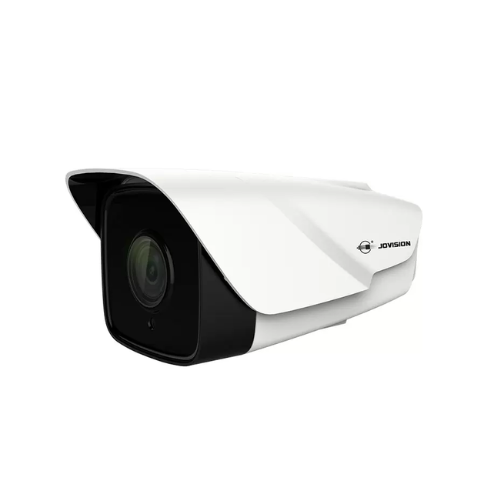

JVS-N515-HY 5MP Bullet Camera with 50m IR & Aluminum Housing

JVS-N515-HY 5MP Bullet PoE Camera

Brand:
Jovision

-50m IR & IP67 Rating

The JVS-N515-HY is a 5MP bullet PoE camera featuring 50m IR night vision, H.265 compression, aluminum housing, and IP67 waterproof rating for professional outdoor surveillance.

44 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

JVS-N515-HY 5MP Bullet PoE Camera with 50m IR & IP67 Rating

Product Overview

The JVS-N515-HY delivers high-performance security monitoring with:

  • 5MP ultra-HD resolution (2592×1944) @20fps

  • 4 array IR LEDs with exceptional 50m night vision range

  • Durable hybrid construction (aluminum + plastic)

  • Wide 88.4° viewing angle for maximum coverage

  • PoE or DC12V powered for flexible installation

  • IP67-rated for all-weather outdoor operation

With ONVIF 2.4 compliance, CloudSEE mobile app support, and H.265 compression, the JVS-N515-HY excels in perimeter security, parking lots, and industrial monitoring.

Model JVS-N515-HY-PE
Video
Image Sensor 1/ 3” CMOS
Max Resolution 2592×1944
Effective Pixels 5.0MP
Compression Standard H.265
Maximum Frame Rate 5.0MP@20fps
SNR(dB) 56dB
Bitrate 128Kbps～8Mbps
Illumination 0Lux (IR ON)
Lens
Lens 4mm
Viewing Angle H: 88.4°; V: 47°; D: 105.2°
IR-LEDs 4Pcs Array IR LEDs
IR-Distance Up to 50 Meters
Function
Motion Detection Support
Email Alert Support
Day& Night Support
Recording Support (NVR, Windows PC, Smartphone)
DHCP Support
FTP Not Supported
Pan/Tilt Not Supported
SD-Card Not Supported
Privacy Mask Support up 8 areas
Exposure Control Support
Image Adjustment Support
Auto. White Balance Support
Image Rotation Support (Mirror/Flip)
Network
Ethernet 10M/100M Ethernet, RJ45 Port
Protocols HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Stream 2x Streams
Wi-Fi Not Supported
LAN Support
ONVIF ONVIF 2.4
User Up to 13 Users
Browser IE8+, Chrome18+ ~ 42-
Smart Phone iOS/Android
General
Dimensions(W*H*D) 201x96x88 mm
Weights 530g
Material Aluminum for black part and plastic for white part
Working Temperature -20°C～60°C
Humidity RH 10%～90%
Power Supply DC12V/1A, PoE (IEEE 802.3af)
Consumption Day ≦3W  Night ≦8W
Waterproof IP67

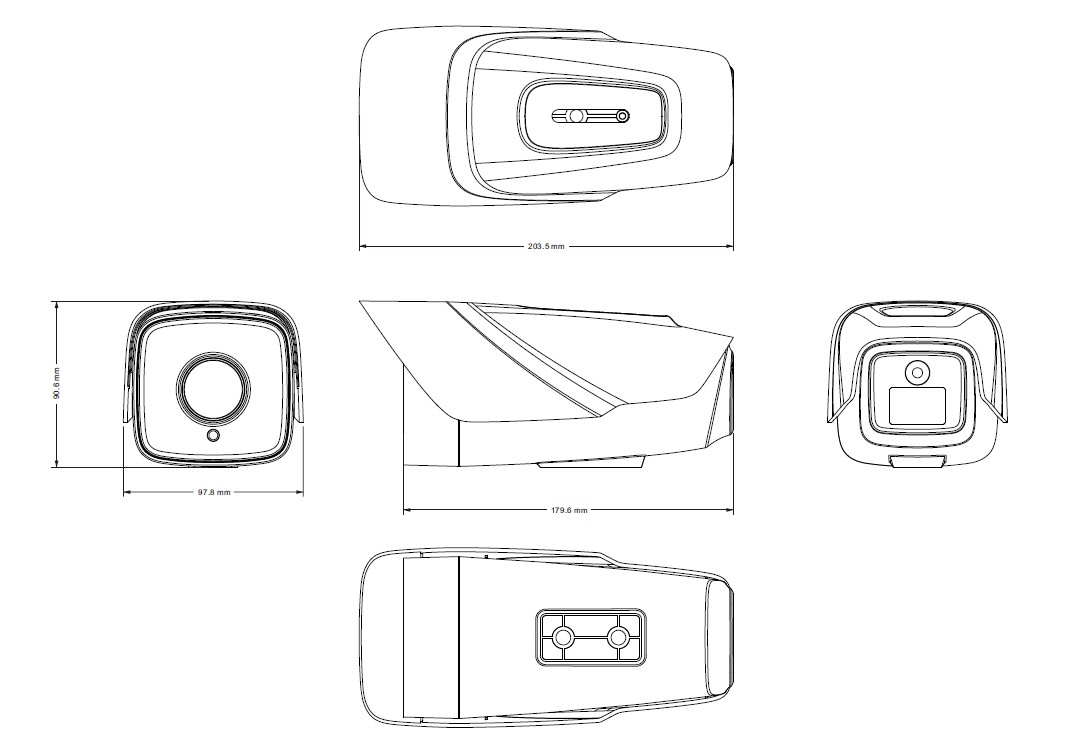

Dimensions (mm)



JVS-N515-HY

JVS-N515-HY-PE 5MP Bullet PoE IP Camera.pdf
