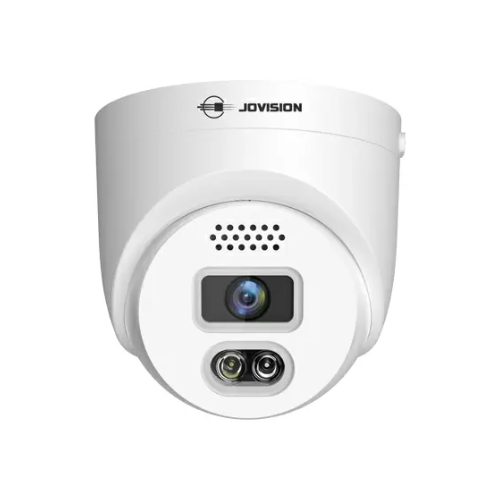

JVS-N537-SDL 5MP Full-Color PoE Camera with Humanoid Detection & Spotlight

JVS-N537-SDL | 5MP Full-Color PoE Camera

Brand:
Jovision

-with Humanoid Detection & Spotlight

The JVS-N537-SDL is a 5MP full-color PoE network camera featuring humanoid detection, dual smart illumination, built-in audio, IP67 rating, and VQC technology for superior video quality.

15 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

JVS-N537-SDL | 5MP Full-Color PoE Camera with Humanoid Detection & Spotlight

Product Overview

The JVS-N537-SDL is a premium 5MP full-color PoE network camera designed for advanced intelligent surveillance with exceptional video quality and precise detection capabilities. The JVS-N537-SDL delivers superior 2560×1792 resolution video featuring unique VQC (Video Quality Catalyst) technology that enhances image clarity and overall performance. This camera excels with accurate humanoid detection technology and spotlight activation on motion, providing both visual deterrence and clear identification. With dual smart illumination combining white LEDs and IR LEDs, built-in microphone and speaker for two-way audio, and IP67 weatherproof rating, the JVS-N537-SDL offers comprehensive security monitoring in any environmental conditions. Supporting SD card storage up to 512GB, advanced analytics including region intrusion and line crossing detection, and H.265 compression.

Specifications
Video
Image Sensor 1/3″ CMOS Sensor
Max Resolution 2560×1792
Effective Pixels 5.0MP
Compression Standard H.264/H.265
Framerate 25fps
Bitrate Main   Stream: 317Kbps ~ 8MbpsSub   Stream: 68Kbps~2728Kbps
SNR (dB) 52dB
Min. Illumination 0Lux   (light ON)
Lens
Interface Type M12
Lens 2.8mm
FOV 2.8mm:H   96°, V 53°, D 110°
Function
Audio Codec G.711U/G.711A (default)
Exposure Control Auto
White Balance Auto
Gain Control Auto
Digital 3D Noise   Reduction Support
OSD Information Setting Large   font OSD, OSD flashing on alarm, OSD position settings
SNTP Support
Schedule Reboot Support
Smart Defog Support
Motion Detection Support Humanoid Detection
Image Setting Support Saturation, Brightness, Contrast, Sharpness   adjustment
Image Style Standard, Soft, Transparent
Day and Night Function Auto, Always Black & White, Always Color, Scheduled   Color
Privacy Mask Support up 8 areas
Night Vision   Optimization Support
DWDR Support
Screen Settings Screen mirroring, Screen flipping
IP Adaptation Support automatic adaptation of IP address (Optional)
Intelligent   Analysis Support Region Intrusion Detection, Line Crossing Detection,   Video Blocking Detection, People Counting
Alarm Method Email Alarm, Client Alarm
Remote Operation System, Audio and Video, Image, Alarm, Network management,   Storage management, Intelligent Analysis
Audio Function Built-in Mic and Speaker
SD Card Support 512GB
VQC Technology Support
Network
Ethernet 10/100Mbps Ethernet
Stream 2x   Streams
Network Protocols HTTP,   TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIF Standard   ONVIF
Network Transmission CloudSEE 2.0
Browser IE8+,   Chrome18+, Firefox5.0+, Safari5.02+
User Up   to 13 Users
App Support iOS/Android
General
Lights 2   White LEDs + 2 IR LEDs
IR Distance Up to 30 Meters
Waterproof Level IP67
Power Supply DC12V or PoE (IEEE802.3af)
Power Consumption <4W   (During Day); <6W (At Night)
Working Temperature -25°C ~ 55°C
Working Humidity 5% ~ 95% Rh
Color/Material White/Plastic+Metal
Dimensions (WxHxD) 106x94x106mm
Weight 320g
Installation Method Wall or ceiling mount

JVS-N537-SDL 5.0MP Full-Color Video & Audio PoE Network Camera.pdf
