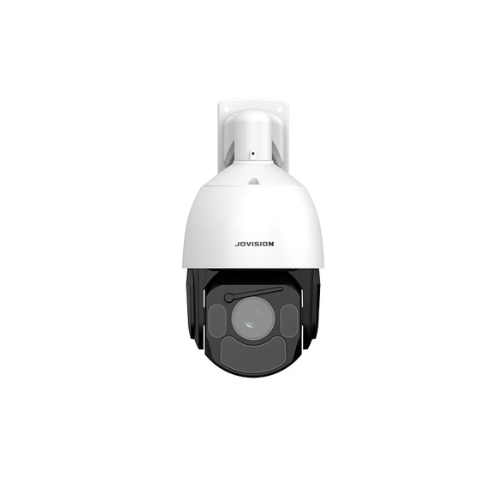

JVS-N59-Z40 | 5MP Full-Color PTZ IP Camera
-with 40x Optical Zoom & 250m IR
The JVS-N59-Z40 is a 5MP full-color PTZ IP camera featuring 40x optical zoom, 250m IR night vision, human tracking, and 360° continuous rotation for professional surveillance.
Shipping calculated at checkout.
Guarantee Safe and Secure Payment Checkout
Key Features
- 5MP Ultra-clear Image Quality Starlight level ultra-low light zoom camera with built-in GPU chip.
- Built in 250m infrared light for supplementary illumination.
- Perimeter Prevention: Region Intrusion, Line Crossing, Motion Detection.
- Support Humanoid Tracking Zoom Function.
- External Interface: External Audio Input, External Audio Output, Support Two-way Intercom.
- Support SD card (512G).
- Support timestamps, with absolute millisecond level timestamps for each frame of stream output; 360 ° continuous rotation in the horizontal direction, automatic flipping of 180 ° in the vertical direction from -15 ° to 90 °, and continuous monitoring without any blind spots.
- Supports 1024 preset positions, 8 cruising paths, 5 tracking.
Specifications
| Video | |
| Image Sensor | 1/1.8″ CMOS Sensor |
| Max Resolution | 2496×1792 |
| Effective Pixels | 5.0MP |
| Compression Standard | H.264/H.265(Default) |
| Frame Rate | 25fps |
| Bitrate | Main Stream: 256Kbps ~ 8192Kbps
Sub Stream: 68Kbps~1024Kbps |
| SNR (dB) | 50dB |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | Non-standard Interface |
| Lens | 40x Optical |
| Focal length | 5.3mm-215mm |
| Function | |
| Audio Codec | G.711U/G.711A (Default) |
| Exposure Control | Auto |
| White Balance | Auto |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting | Large Font OSD, OSD Flashing on Alarm, OSD Position Settings |
| SNTP | Support |
| Schedule Reboot | Support |
| Smart Defog | Support |
| Motion Detection | Support Humanoid Detection |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness Adjustment |
| Image Style | Standard, Soft, Transparent |
| Day and Night Function | Automatic Switching, Timing Switching, Day Mode, Night Mode |
| Privacy Mask | Support Up To 24 Masking Areas |
| Night Vision Optimization | Support |
| DWDR | Support |
| Screen Settings | Screen Mirroring, Screen Flipping |
| IP Adaptation | Support Automatic Adaptation of IP Address |
| Intelligent Analysis | Support Region Intrusion, Line Crossing, Video Tampering Detection |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis |
| External Interface | External Audio Input, External Audio Output |
| SD Card | Support（512G） |
| Pan/Tilt Range | Pan: 0°～360°; Tilt: -15°～90° |
| Pan Speed | 0°～180°/S |
| Tilt Speed | 0°～75°/S |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP；HTTPS；IPv4；RTSP；UDP；SMTP；NTP；DHCP；DNS；DDN；802.1x；Qos；FTP；UPnP；ICMP；SNMP；IGMP；RTP；PPPoE；RTMP；TCP |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 3.0, Onvif |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 13 infrared and laser lights |
| Fill Light Distance | Warm Light: 60 Meters
IR LED:250 Meters |
| Network interface | RJ45*1 SFP*1 |
| Alarm interface | Alarm in*2 Alarm Out*2 |
| Waterproof Level | IP67 |
| Power Supply | DC12V/3.33A or PoE |
| Power Consumption | ≤25W |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 0% ~ 93% Rh |
| Color/Material | Front Ball Shell: Aluminum Alloy Black; Rear Ball Shell: ABS Black; Bracket: Aluminum Alloy White |
| Dimensions (WxHxD) | 400x325x325mm |
| Weight | 3500g |
| Installation Method | Wall Mount |
JVS-N59-Z40 | 5MP Full-Color PTZ IP Camera with 40x Optical Zoom & 250m IR
Product Overview
The JVS-N59-Z40 is a professional-grade 5MP full-color PTZ IP camera designed for extreme long-range surveillance and advanced security applications. The JVS-N59-Z40 delivers exceptional 2496×1792 resolution with a powerful 40x optical zoom lens (5.3mm-215mm) capable of capturing detailed imagery at remarkable distances. Featuring industry-leading 250-meter infrared illumination and 60-meter warm light coverage, this camera provides unparalleled night vision performance for 24/7 monitoring. With 360° continuous horizontal rotation and 180° vertical rotation (-15° to 90°), the JVS-N59-Z40 ensures complete area coverage without blind spots. Advanced AI capabilities include human tracking, perimeter protection with region intrusion detection, and support for 1024 preset positions with 8 cruising paths. Built with IP67 weatherproof rating, aluminum alloy construction, and multiple interface options including SFP fiber connectivity.
