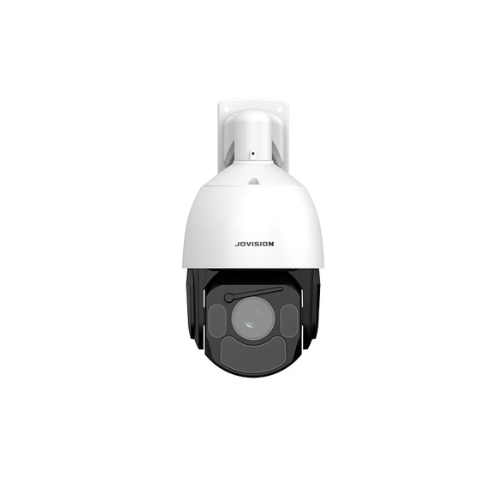

JVS-N59-Z40 5MP Full-Color PTZ IP Camera with 40x Optical Zoom & 250m IR

JVS-N59-Z40 | 5MP Full-Color PTZ IP Camera

Brand:
Jovision

-with 40x Optical Zoom & 250m IR

The JVS-N59-Z40 is a 5MP full-color PTZ IP camera featuring 40x optical zoom, 250m IR night vision, human tracking, and 360° continuous rotation for professional surveillance.

15 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

JVS-N59-Z40 | 5MP Full-Color PTZ IP Camera with 40x Optical Zoom & 250m IR

Product Overview

The JVS-N59-Z40 is a professional-grade 5MP full-color PTZ IP camera designed for extreme long-range surveillance and advanced security applications. The JVS-N59-Z40 delivers exceptional 2496×1792 resolution with a powerful 40x optical zoom lens (5.3mm-215mm) capable of capturing detailed imagery at remarkable distances. Featuring industry-leading 250-meter infrared illumination and 60-meter warm light coverage, this camera provides unparalleled night vision performance for 24/7 monitoring. With 360° continuous horizontal rotation and 180° vertical rotation (-15° to 90°), the JVS-N59-Z40 ensures complete area coverage without blind spots. Advanced AI capabilities include human tracking, perimeter protection with region intrusion detection, and support for 1024 preset positions with 8 cruising paths. Built with IP67 weatherproof rating, aluminum alloy construction, and multiple interface options including SFP fiber connectivity.

Specifications

Video
Image Sensor 1/1.8″ CMOS Sensor
Max Resolution 2496×1792
Effective Pixels 5.0MP
Compression Standard H.264/H.265(Default)
Frame Rate 25fps
Bitrate Main Stream: 256Kbps ~ 8192Kbps

Sub Stream: 68Kbps~1024Kbps
SNR (dB) 50dB
Min. Illumination 0Lux (light ON)
Lens
Interface Type Non-standard Interface
Lens 40x Optical
Focal length 5.3mm-215mm
Function
Audio Codec G.711U/G.711A (Default)
Exposure Control Auto
White Balance Auto
Gain Control Auto
Digital 3D Noise Reduction Support
OSD Information Setting Large Font OSD, OSD Flashing on Alarm, OSD Position Settings
SNTP Support
Schedule Reboot Support
Smart Defog Support
Motion Detection Support Humanoid Detection
Image Setting Support Saturation, Brightness, Contrast, Sharpness Adjustment
Image Style Standard, Soft, Transparent
Day and Night Function Automatic Switching, Timing Switching, Day Mode, Night Mode
Privacy Mask Support Up To 24 Masking Areas
Night Vision Optimization Support
DWDR Support
Screen Settings Screen Mirroring, Screen Flipping
IP Adaptation Support Automatic Adaptation of IP Address
Intelligent Analysis Support Region Intrusion, Line Crossing, Video Tampering Detection
Alarm Method Email Alarm, Client Alarm
Remote Operation System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis
External Interface External Audio Input, External Audio Output
SD Card Support（512G）
Pan/Tilt Range Pan: 0°～360°; Tilt: -15°～90°
Pan Speed 0°～180°/S
Tilt Speed 0°～75°/S
Network
Ethernet 10/100Mbps Ethernet
Stream 2x Streams
Network Protocols HTTP；HTTPS；IPv4；RTSP；UDP；SMTP；NTP；DHCP；DNS；DDN；802.1x；Qos；FTP；UPnP；ICMP；SNMP；IGMP；RTP；PPPoE；RTMP；TCP
ONVIF Standard ONVIF
Network Transmission CloudSEE 3.0, Onvif
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up to 13 Users
App Support iOS/Android
General
Lights 13 infrared and laser lights
Fill Light Distance Warm Light: 60 Meters

IR LED:250 Meters
Network interface RJ45*1   SFP*1
Alarm interface Alarm in*2  Alarm Out*2
Waterproof Level IP67
Power Supply DC12V/3.33A or PoE
Power Consumption ≤25W
Working Temperature -20°C ~ 60°C
Working Humidity 0% ~ 93% Rh
Color/Material Front Ball Shell: Aluminum Alloy Black; Rear Ball Shell: ABS Black; Bracket: Aluminum Alloy White
Dimensions (WxHxD) 400x325x325mm
Weight 3500g
Installation Method Wall Mount

JVS-N59-Z40.pdf
