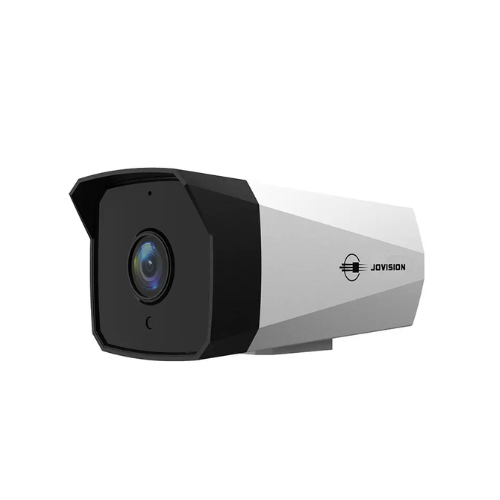

JVS-N813-K1 2MP Starlight IP Camera
-3.0 Night Vision & 20m IR
The JVS-N813-K1 is a 2MP starlight IP camera featuring SNE3.0 night vision technology, 20m IR range, H.265 compression, and IP67 waterproof rating for reliable outdoor surveillance.
77 people are viewing this product right now
JVS-N813-K1 2MP Starlight IP Camera with SNE3.0 Night Vision & 20m IR
Product Overview
The JVS-N813-K1 delivers superior low-light performance with advanced features:
-
2MP Full HD resolution (1920×1080) @25fps with H.265 compression
-
SNE3.0 night vision technology for enhanced low-light clarity
-
4 high-power IR LEDs providing 20m night vision range
-
93.4° wide viewing angle for maximum coverage
-
IP67-rated waterproof plastic housing
-
PoE or DC12V powered for flexible installation
With ONVIF 2.4 compliance, ROI encoding, and CloudSEE support, the JVS-N813-K1 is ideal for perimeter security, parking areas, and 24/7 monitoring applications.
| Model | JVS-N813-K1 |
| Video | |
| Image Sensor | 1/2.9” CMOS |
| Max Resolution | 1920 x 1080 |
| Effective Pixels | 2.0MP |
| Compression Standard | H.265/H.264 |
| Maximum Frame Rate | 1080p@25fps |
| SNR(dB) | 52dB |
| Bit Rate | 204Kbps～8Mbps |
| Illumination | 0Lux (LED ON) |
| Lens | |
| Lens | 4mm,M12 |
| Viewing Angle | 93.4° |
| IR-LEDs | 4x high power LEDs |
| IR-Distance | Up to 20 Meters |
| Function | |
| Motion Detection | Support |
| Email Alert | Support |
| Day& Night | Support |
| Recording | Support (NVR, Windows PC, Smartphone) |
| DHCP | Support |
| Advanced OSD | Support OSD large font function, OSD and time to set the position separately, 5 lines x 32 characters |
| Behavior analysis | Regional intrusion， traffic statistics, video occlusion |
| Day and night function | Day and night automatic switching |
| Privacy Mask | Support up 8 areas |
| Exposure Control | Support |
| Image Adjustment | Support |
| Auto. White Balance | Support |
| Image Rotation | Support (Mirror/Flip) |
| LED brightness | Automatic adjustment |
| Network | |
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS,DDNS |
| Stream | 2x Streams |
| LAN | Support |
| ONVIF | ONVIF 2.4 |
| User | Up to 13 Users |
| Browser | IE8+,Chrome18+,Firefox5.0+,Safari5.02+ |
| Smart Phone | iOS/Android |
| General | |
| Dimensions(W*H*D) | 178x88x85.7(mm) |
| Weights | 400g |
| Material | Plastic |
| Working Temperature | -20°C～60°C |
| Humidity | RH 10%～90% |
| Power Supply | DC12V/1.5A, PoE (IEEE 802.3af) |
| Consumption | Day ≦3W Night ≦12W |
| Waterproof | IP67 |

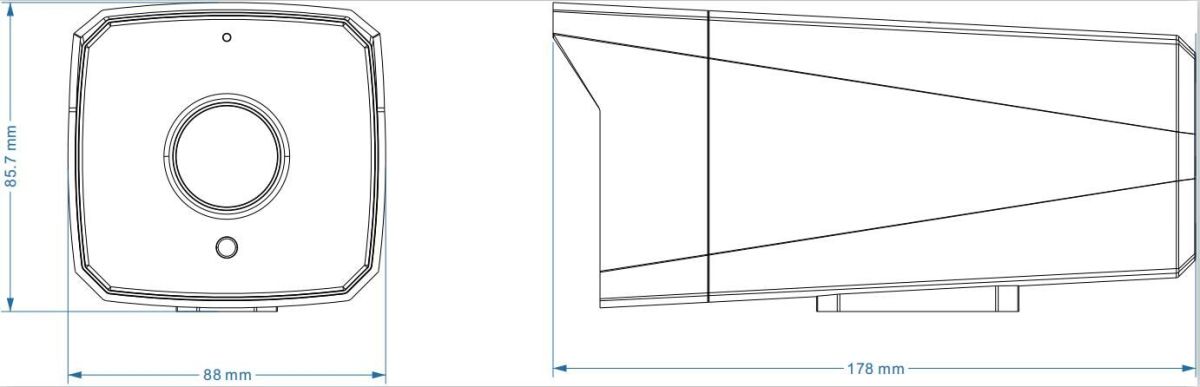

Dimensions (mm)
