-Human Detection & 30m Night Vision

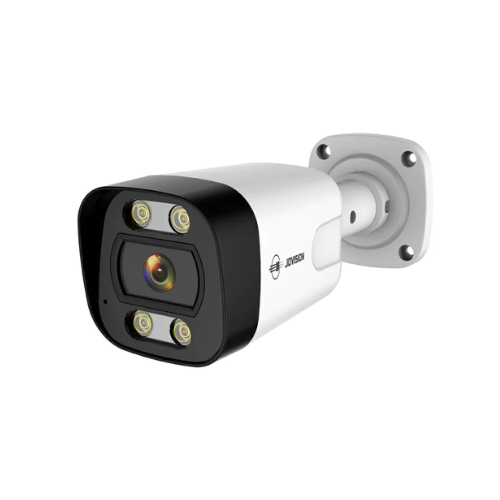

The JVS-N916-YDL is a 3MP full-color bullet IP camera featuring human detection, dual illumination (4IR+4Warm LEDs), built-in mic, and IP66 rating for reliable outdoor security.
| Video | |
| Image Sensor | 1/ 2.9” CMOS |
| Max Resolution | 2304×1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.265 / H.264 |
| Maximum Frame Rate | 20fps |
| SNR(dB) | 52dB |
| Bit Rate | 256Kbps～8Mbps |
| Illumination | 0Lux (IR ON) |
| Lens | |
| Lens | 3.6mm |
| Viewing Angle | H: 78.5°; V: 42.8°; D:92.6° |
| IR-LEDs | 4x IR-LED + 4x Warm-LED |
| IR-Distance | Up to 30 Meters |
| Function | |
| Motion Detection | Support |
| Email Alert | Support |
| Day & Night | Support |
| Recording | Support (NVR, Windows PC, Smartphone) |
| DHCP | Support |
| FTP | Not Supported |
| Pan/Tilt | Not Supported |
| SD Card | Not Supported |
| Privacy Mask | Support up to 8 areas |
| Exposure Control | Support |
| Image Adjustment | Support |
| Auto. White Balance | Support |
| Image Rotation | Support (Mirror/Flip) |
| Network | |
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Stream | 2x Streams |
| Wi-Fi | Not Supported |
| LAN | Support |
| ONVIF | ONVIF 2.4 |
| User | Up to 13 Users |
| Browser | IE8+, Chrome18+ ~ 42- |
| Smart Phone | iOS/Android |
| General | |
| Dimensions(WxHxD) | 182x65x65mm |
| Weight | ≤460g |
| Material | Metal |
| Working Temperature | -20°C~60°C |
| Humidity | RH 10%~90% |
| Power Supply | DC12V, PoE |
| Consumption | Day ≤3W Night ≤6W |
| Waterproof | IP66 |
The JVS-N916-YDL delivers crisp 3MP (2304×1296) resolution with intelligent security features:
3MP HD resolution @20fps with H.265 compression
Smart dual illumination: 4 IR + 4 warm LEDs (30m range)
Human detection with motion-activated spotlight
Built-in microphone for audio monitoring
IP66-rated metal housing for outdoor durability
PoE-powered for easy installation
With 78.5° viewing angle, ONVIF 2.4 compliance, and wide temperature tolerance (-20°C~60°C), the JVS-N916-YDL is ideal for perimeter security, entry points, and small business surveillance.
