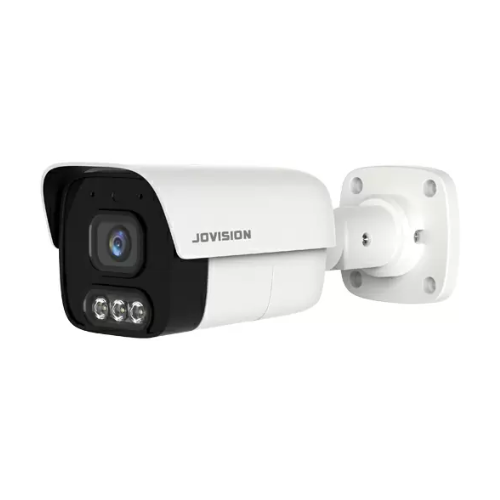

JVS-N917-YDL 3.0MP Full-Color IP Camera
-Human Detection & Two-Way Audio
The JVS-N917-YDL is a 3.0MP full-color IP camera featuring human detection, built-in mic/speaker, VQC technology, and IP67 rating for reliable 24/7 surveillance.
79 people are viewing this product right now
JVS-N917-YDL 3.0MP Full-Color IP Camera with Human Detection & Two-Way Audio
Product Overview
The JVS-N917-YDL is a high-performance 3.0MP (2304×1296) IP camera designed for intelligent security monitoring. Key features include:
-
3.0MP HD resolution with H.265 compression for efficient storage
-
Advanced humanoid detection with smart analytics (intrusion/crossing detection)
-
Built-in microphone & speaker for clear two-way communication
-
VQC (Video Quality Catalyst) Technology for superior image clarity
-
30m IR night vision with 3 white LEDs + 3 IR LEDs
-
IP67 weatherproof housing for outdoor durability
With 512GB SD storage, DWDR, and ONVIF/CloudSEE 2.0 support, the JVS-N917-YDL is ideal for residential, retail, and light commercial security applications.
| Video | |
| Image Sensor | 1/2.9″ CMOS Sensor |
| Max Resolution | 2304×1296 |
| Effective Pixels | 3.0MP |
| Compression Standard | H.264/H.265 |
| Framerate | 25fps |
| Bitrate | Main Stream: 294Kbps ~ 8192Kbps
Sub Stream: 58Kbps~ 2356Kbps |
| Min. Illumination | 0Lux (light ON) |
| Lens | |
| Interface Type | M12 |
| Lens | 4mm |
| FOV | H 83.4°, V 43.1°, D 99.1° |
| Function | |
| Audio Codec | G.711U (default)/G.711A |
| Gain Control | Auto |
| Digital 3D Noise Reduction | Support |
| OSD Information Setting | Large font OSD, OSD flashing on alarm, OSD position settings |
| Motion Detection | Support Humanoid Detection |
| Image Setting | Support Saturation, Brightness, Contrast, Sharpness adjustment |
| Privacy Mask | Support up 8 areas |
| DWDR | Support |
| Screen Settings | Screen mirroring, Screen flipping |
| Intelligent Analysis | Support Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection |
| Alarm Method | Email Alarm, Client Alarm |
| Remote Operation | System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis |
| Audio Function | Built-in Mic and Speaker |
| SD Card | Support(512GB) |
| VQC Technology | Support |
| Network | |
| Ethernet | 10/100Mbps Ethernet |
| Stream | 2x Streams |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| ONVIF | Standard ONVIF |
| Network Transmission | CloudSEE 2.0 |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| User | Up to 13 Users |
| App | Support iOS/Android |
| General | |
| Lights | 3 White LEDs + 3 IR LEDs |
| IR Distance | Up to 30 Meters |
| Waterproof Level | IP67 |
| Power Supply | DC12V or PoE |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh |
| Color/Material | Black and White/Plastic and Metal |
| Installation Method | Wall or ceiling mount |
