Key Features
- 1/ 2.9″ CMOS Sensor
- Resolution:1920×1080
- 4Pcs Warm LEDs, Light Range 15m.
- Support Digital Wide Dynamic Range
- Ingress Protection IP66
- Support UTC
- Support Audio

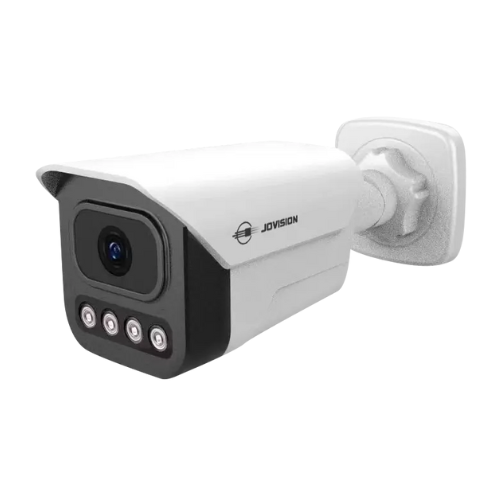

JVS-A816-LYC | 2MP Analog Full Color Bullet Camera
-with 15m Warm Light & Audio
The JVS-A816-LYC is a 2MP analog full color bullet camera featuring 1080p resolution, built-in audio, 15m warm light vision, and IP66 rating for analog HD systems.
68 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Guarantee Safe and Secure Payment Checkout
Specification
| Camera | |
| Image Sensor | 1/ 2.9″ CMOS Sensor |
| Image Resolution | 1920×1080 |
| Effective Pixels | 2.0MP |
| TV System | PAL/NTSC |
| Signal mode | AHD/TVI/CVI/CVBS |
| Electronic Shutter | 1/10s~1/100,000s |
| S/N Ratio | ≥39dB |
| Scanning System | Progressive Scan |
| Lens | |
| Lens | Board Lens 3.6mm/F2.0 |
| Lens Type | Fixed |
| Auto Iris Support | N/A |
| Night Vision | |
| Warm LED | 28µ x 4PCS |
| Infrared Distance | 15m |
| IR Cut Filter | N/A |
| LED Status | Turn on below 7 Lux |
| LED control | Software control |
| Day & Night | Full Color |
| Camera Features | |
| OSD Menu Language | Optional |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Picture Adjustment | N/A |
| WDR | DWDR |
| OSD Support | Optional |
| Audio | Built-in mic |
| UTC | Optional |
| General | |
| Housing | Plastic+Metal |
| Bracket | Yes |
| Operation Temperature | -100C ~ 500C Rh 95% Max |
| Storage Temperature | -200C ~ 600C Rh 95% Max |
| Power Source | DC12V±10%,230mA |
| Weight | ≤200g |
JVS-A816-LYC | 2MP Analog Full Color Bullet Camera with 15m Warm Light & Audio
Product Overview
The JVS-A816-LYC is a reliable 2MP analog bullet camera designed for full-color monitoring while maintaining perfect compatibility with existing analog systems. The JVS-A816-LYC delivers sharp 1920×1080 resolution through advanced AHD/TVI/CVI/CVBS multi-protocol support, enabling seamless integration with both new and legacy DVR systems without requiring cable replacement. Featuring four warm LEDs that provide 15-meter full-color night vision, this camera ensures consistent color monitoring 24/7 without the harsh red glow associated with traditional infrared illumination. The JVS-A816-LYC includes a built-in microphone for audio capture, digital wide dynamic range (DWDR) for balanced imaging in high-contrast lighting, and 3D digital noise reduction for clearer video quality. With IP66 weatherproof rating and durable metal-reinforced construction.
