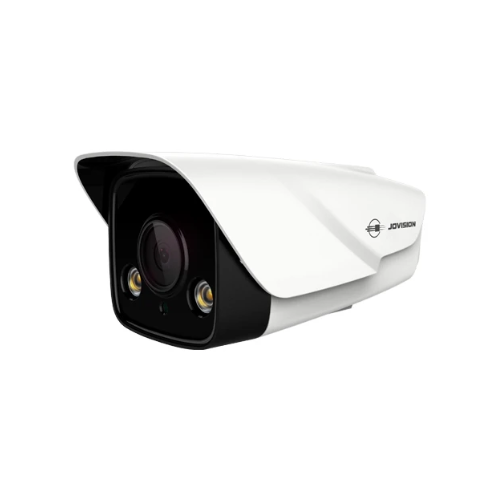

JVS-N416-SCR 4.0MP Motorized Zoom IP Camera for Instrument Panel Monitoring

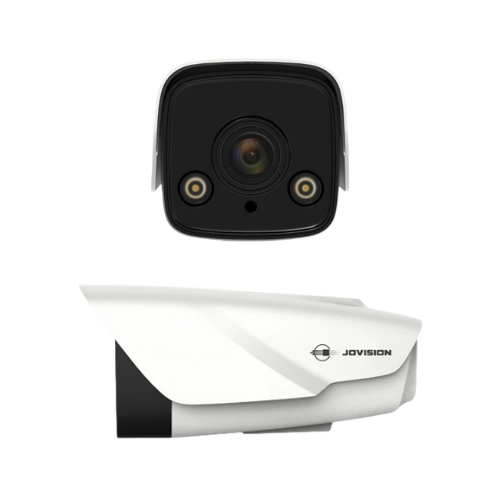

JVS N416 SCR 4.0MP Motorized Zoom IP Camera for Instrument Panel Monitoring with SOTIA Technology 2nd Image
  • JVS-N416-SCR 4.0MP Motorized Zoom IP Camera for Instrument Panel Monitoring
  • JVS N416 SCR 4.0MP Motorized Zoom IP Camera for Instrument Panel Monitoring with SOTIA Technology 2nd Image

JVS-N416-SCR 4.0MP Motorized Zoom IP Camera

Brand:
Jovision

-for Instrument Panel Monitoring with SOT+IA Technology

The JVS-N416-SCR is a specialized 4.0MP motorized zoom IP camera designed for instrument panel monitoring, featuring SOT+IA technology, IP67 rating, and smart dual illumination.

49 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

JVS-N416-SCR 4.0MP Motorized Zoom IP Camera for Instrument Panel Monitoring with SOT+IA Technology

Product Overview

The JVS-N416-SCR is a high-precision 4.0MP motorized zoom IP camera engineered specifically for monitoring instrument panels and meters in industrial environments. With its 2.8-12mm motorized zoom lens and SOT+IA (Specific Optical Technology + Intelligence Algorithm), the JVS-N416-SCR delivers crystal-clear imaging of dials, gauges, and digital displays.

Key features include:

  • 4.0MP resolution (2560×1440) with H.265+ compression

  • Motorized zoom (2.8-12mm) for flexible focus adjustment

  • Smart dual illumination (2 white LEDs + 2 IR LEDs) for 0Lux visibility

  • IP67 waterproof rating for harsh industrial environments

  • SOT+IA technology for enhanced meter readability

Ideal for power plants, manufacturing facilities, and utility monitoring, the JVS-N416-SCR ensures accurate remote reading of critical instruments.

Video
Image Sensor 1/3” CMOS Sensor
Max Resolution 2560×1440
Effective Pixels 4.0MP
Compression Standard H.264/H.265+
Framerate 25fps
Bitrate Main Stream: 256Kbps ~ 8192Kbps

Sub Stream: 68Kbps~1024Kbps
SNR (dB) 50dB
Min. Illumination 0Lux (light ON)
Lens
Interface Type Unconventional Interface Type.
Lens 2.8mm-12mm Motorized Zoom
FOV Telephoto: H 17°, V 29.5°, D 33.7°

Wide Angle: H 54.7°, V 101.7°, D 121.3°
Function
Audio Codec G.711U/G.711A (Default)
Exposure Control Auto, HLC, BLC
OSD Information Setting Large   Font OSD, OSD Flashing on Alarm, OSD Position Settings
Schedule Reboot Support
Smart Defog Support
Motion Detection Support (Humanoid)
Image Setting Support Saturation, Brightness, Contrast, Sharpness Adjustment
Image Style Standard, Soft, Transparent
Day and Night Function Auto, Always Black & White, Always Color, Scheduled   Color
Privacy Mask Support up to 8 Areas
Electronic Screen Setting Support Maximum and Minimum Exposure Time Setting
Night Vision Optimization Support
DWDR Support
Screen Settings Screen Mirroring, Screen Flipping
IP Adaptation Support Automatic Adaptation IP Address (Optional)
Alarm Method Email Alarm, Client Alarm
Remote Operation System, Audio and Video, Image, Alarm, Network Management
Audio Function Not Support
SOT+IA Support
Network
Ethernet 10/100Mbps Ethernet
Stream 16x   Streams
Network Protocols HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIF Standard   ONVIF
Network Transmission CloudSEE 2.0
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up   to 13 Users
App Support iOS/Android
General
Lights 2 White LEDs + 2 IR LEDs
IR Distance Up to 40 Meters
Waterproof Level IP67
Power Supply DC12V   or PoE (IEEE802.3af)
Power Consumption <3W (During Day); <6W (At Night)
Working Temperature -20°C  ~ 60°C
Working Humidity <93% Rh
Color/Material Black & White/Front Shell Aluminum Alloy ADC12, Rear Shell PC

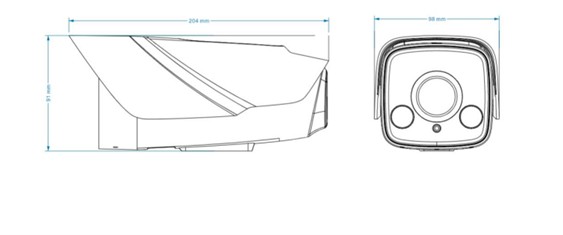

Dimensions (WxHxD) 98x91x204mm
Weight 500g
Installation Method Wall or Ceiling Mount




JVS-N416-SCR 4.0MP Motorized Zoom IP Camera Specific for Monitoring Instrument Panels  Meters.pdf
