JVS-N516-YDL 5MP Full-Color PoE Camera with 30m Dual Illumination & Human Detection

JVS-N516-YDL 5MP Full-Color PoE Camera

Brand:
Jovision

-Human Detection & Smart Illumination

The JVS-N516-YDL is a 5MP full-color PoE camera featuring human detection, dual illumination (4IR+4Warm LEDs), built-in mic, and IP66 rating for reliable outdoor surveillance.

75 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

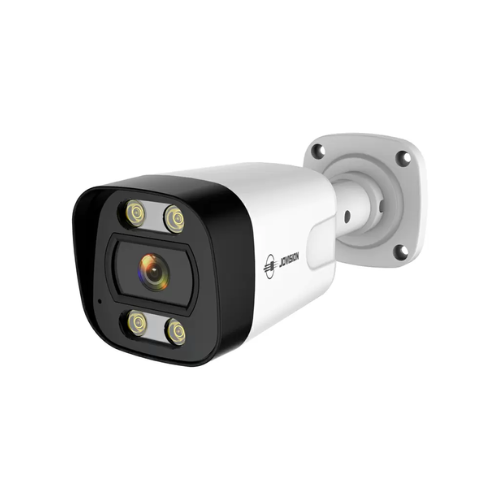

JVS-N516-YDL 5MP Full-Color PoE Camera with Human Detection & Smart Illumination

Product Overview

The JVS-N516-YDL delivers professional 5MP (2592×1944) resolution with intelligent security features:

  • 5MP ultra-HD resolution @25fps with H.265 compression

  • Smart dual illumination: 4 IR + 4 warm LEDs (30m range)

  • Human detection with motion-activated spotlight

  • Built-in microphone for audio recording

  • IP66-rated metal housing for outdoor durability

  • PoE-powered for easy installation

With 78.5° viewing angle, ONVIF 2.4 compliance, and wide temperature tolerance (-20°C~60°C), the JVS-N516-YDL is ideal for perimeter security, entryway monitoring, and commercial applications.

Video
Image Sensor 1/ 2.8” CMOS
Max Resolution 2592×1944
Effective Pixels 5.0MP
Compression Standard H.265 / H.264
Maximum Frame Rate 2592×1944@25fps
SNR(dB) 52dB
Bit Rate 256Kbps～8Mbps
Illumination 0Lux (IR ON)
Lens
Lens 3.6mm
Viewing Angle H: 78.5°, V: 42.8°, D:92.6°
IR-LEDs 4x IR-LED + 4x Warm-LED
IR-Distance Up to 30 Meters
Function
Motion Detection Support
Email Alert Support
Day& Night Support
Recording Support (NVR, Windows PC, Smartphone)
DHCP Support
FTP Not Supported
Pan/Tilt Not Supported
SD-Card Not Supported
Privacy Mask Support up to 8 areas
Exposure Control Support
Image Adjustment Support
Auto. White Balance Support
Image Rotation Support (Mirror/Flip)
Network
Ethernet 10M/100M Ethernet, RJ45 Port
Protocols HTTP, TCP/IP,UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
Stream 2x Streams
Wi-Fi Not Supported
LAN Support
ONVIF ONVIF 2.4
User Up to 13 Users
Browser IE8+, Chrome18+ ~ 42-
Smart Phone iOS/Android
General

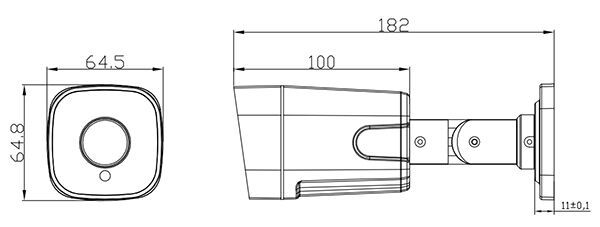

Dimensions(WxHxD) 182x65x65mm
Weights ≤460g
Material Metal
Working Temperature -20°C～60°C
Humidity RH 10%～90%
Power Supply DC12V, PoE
Consumption Day ≦3W Night ≦ 6W
Waterproof IP66


JVS-N516-YDL 5.0MP Full-Color Video & Audio PoE Network Camera.pdf
