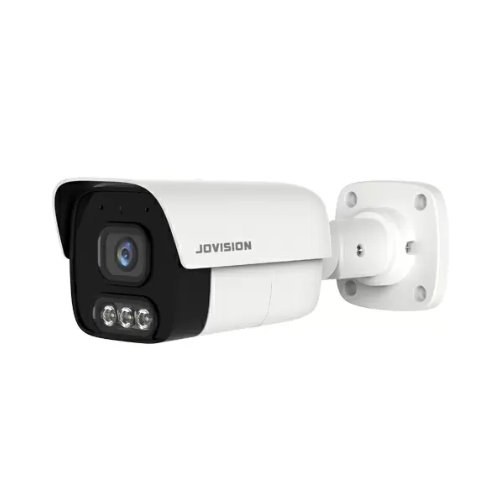

JVS-N517-YDL 5.0MP Full-Color IP Camera with Human Detection & 30m Night Vision

JVS-N517-YDL 5.0MP Full-Color IP Camera

Brand:
Jovision

-Human Detection & Two-Way Audio

The JVS-N517-YDL is a 5.0MP full-color IP camera featuring human detection, built-in mic/speaker, VQC technology, and IP67 rating for superior 24/7 surveillance.

69 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

JVS-N517-YDL 5.0MP Full-Color IP Camera with Human Detection & Two-Way Audio

Product Overview

The JVS-N517-YDL delivers professional-grade 5.0MP (2560×1792) resolution with advanced AI features for intelligent security monitoring. This feature-packed camera offers:

  • 5.0MP ultra-HD resolution with H.265 compression

  • Humanoid detection with smart analytics (intrusion/crossing detection)

  • Built-in microphone & speaker for two-way communication

  • VQC (Video Quality Catalyst) Technology for enhanced clarity

  • 120dB WDR and SAFE function for optimal exposure control

  • IP67 weatherproof housing for outdoor reliability

With 30m IR night vision, 512GB SD storage, and ONVIF/CloudSEE 2.0 support, the JVS-N517-YDL excels in residential, commercial, and industrial security applications.

Video
Image Sensor 1/2.9″ CMOS Sensor
Max Resolution 2560×1792
Effective Pixels 5.0MP
Compression Standard H.264/H.265
Framerate 25fps
Bitrate Main Stream: 294Kbps ~ 8192Kbps

Sub Stream: 58Kbps~ 2356Kbps
Min. Illumination 0Lux (light ON)
Lens
Interface Type M12
Lens 3.6mm
FOV H   83.4°, V 43.1°, D 99.1°
Function
Audio Codec G.711U (default)/G.711A
Gain Control Auto
Digital 3D Noise   Reduction Support
OSD Information Setting Large font OSD, OSD flashing on alarm, OSD position settings
Motion Detection Support Humanoid Detection
Image Setting Support Saturation, Brightness, Contrast, Sharpness adjustment
Privacy Mask Support up 8 areas
WDR 120dB
Screen Settings Screen mirroring, Screen flipping
Intelligent   Analysis Support Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection
Alarm Method Email Alarm, Client Alarm
Remote Operation System, Audio and Video, Image, Alarm, Network management, Storage management, Intelligent Analysis
Audio Function Built-in Mic and Speaker
SD Card Support(512GB)
VQC Technology Support
Network
Ethernet 10/100Mbps Ethernet
Stream 2x Streams
Network Protocols HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIF Standard ONVIF
Network Transmission CloudSEE 2.0
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up to 13 Users
App Support iOS/Android
General
Lights 3 White LEDs + 3 IR LEDs
IR Distance Up to 30 Meters
Waterproof Level IP67
Power Supply DC12V or PoE
Working Temperature -20°C ~ 60°C
Working Humidity 10% ~ 90% Rh
Color/Material Black and White/Plastic and Metal
Installation Method Wall or ceiling mount

JVS-N517-YDL 5.0MP Full-Color Video  Audio IP Camera.pdf
