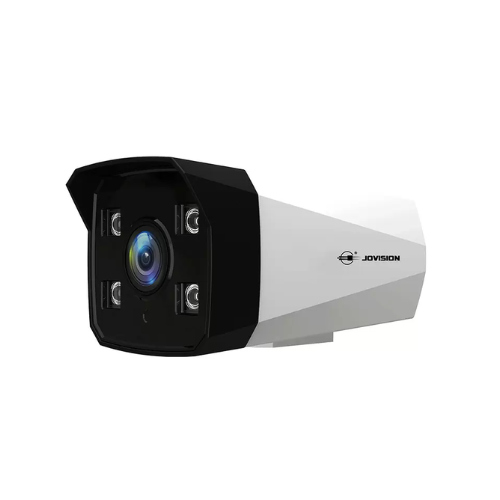

JVS-N916-KDL-PE 3MP Smart Dual-Light Camera with 40m Night Vision & Human Detection

JVS-N916-KDL-PE 3MP Smart Dual-Light PoE Camera

Brand:
Jovision

-Human Detection & 40m Night Vision

The JVS-N916-KDL-PE is a 3MP full-color PoE camera featuring smart light activation (4 white + 4 IR LEDs), human detection, built-in mic, and IP67 rating for responsive security monitoring.

64 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

JVS-N916-KDL-PE 3MP Smart Dual-Light PoE Camera with Human Detection & 40m Night Vision

Product Overview

The JVS-N916-KDL-PE delivers intelligent surveillance with automatic lighting control:

  • 3MP HD resolution (2304×1296) @25fps with H.265 compression

  • Smart dual illumination: 4 white lights + 4 IR LEDs auto-activate (40m range)

  • Human detection (without on-screen marking)

  • Built-in microphone for audio recording

  • IP67-rated weatherproof housing

  • PoE or DC12V powered for flexible installation

With ONVIF 2.4 compliance, CloudSEE 2.0 support, and 3D noise reduction, the JVS-N916-KDL-PE excels in perimeter security, entryway monitoring, and smart property protection.

Model JVS-N916-KDL-PE
Video
Image Sensor 1/2.9″ CMOS Sensor
Max Resolution 2304×1296
Effective Pixels 3.0MP
Compression Standard H.265/H.264
Frame Rate 25fps
Bit Rate 204Kbps~5Mbps
SNR (dB) 52dB
Min. Illumination 0Lux (fill light ON)
Lens
Lens 4mm,8mm (M12)
Fill light 4x double wick filling lamp (infrared/warm)
Fill light distance Up to 40 Meters
Function
Exposure Control Auto
White Balance Auto
Gain control Auto
Image Enhancement 3D DNR
Advanced OSD Support OSD large font function, OSD flashing on alarm, OSD and time to

set the position separately
Motion Detection Support human detection (default does not mark the human box)
Image Setting Rotate, Saturation, Brightness, Contrast, Sharpness
Day and night function Day and night automatic switching
Privacy Mask Support up 8 areas
Intelligent Analysis Not Support
Alarm Method  Email Alarm,Client Alarm
Remote Operation System , Audio and video , Image , Alarm , Network management
Expansion Interface Built-in MIC
Network
Ethernet 10M / 100M Ethernet ,1 RJ45
Stream 2x Streams
Protocols HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
ONVIF standard ONVIF
Network transmission CloudSEE 2.0
Browser IE8+, Chrome18+, Firefox5.0+, Safari5.02+
User Up to 13 Users
App Support iOS/Android
General
Power Supply DC12V/2A
Power Consumption <3W (During day); <6W (At night)
Working Temperature -20°C ~ 60°C
Working Humidity 10% ~ 90% Rh
Material  Plastic
Dimensions (WxHxD) 178*85*85(mm)
Weight 440g
Waterproof IP67

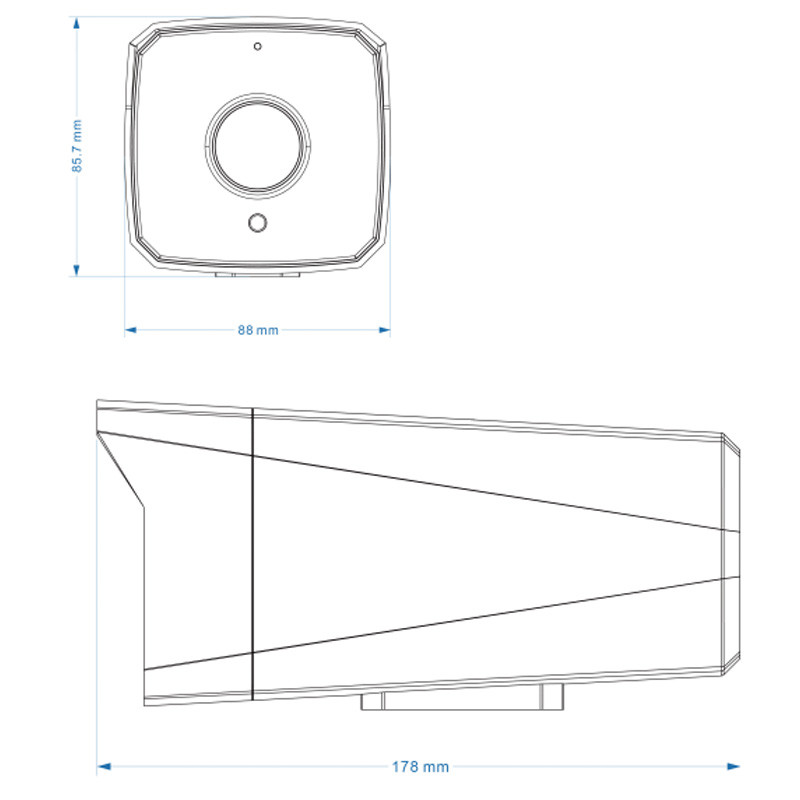

Dimension(mm)




JVS-N916-KDL-PE 3MP Full-Color Audio PoE  IP Camera.pdf
