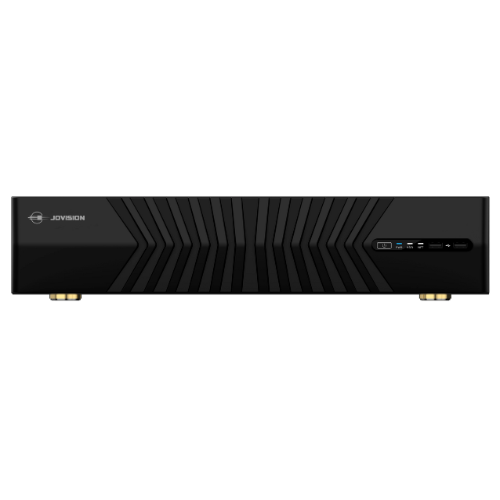

JVS-ND8164-HJ 64CH 8HDD H.265 NVR with 4K Support & RAID Storage

JVS-ND8164-HJ | 64CH 8HDD H.265 NVR

Brand:
Jovision

-with 4K Support & 80TB Storage

The JVS-ND8164-HJ is a 64CH 8HDD H.265 NVR featuring 4K input/output, 80TB storage, RAID support, and enterprise-level management for large surveillance systems.

35 people are viewing this product right now

Contact Us
Categories: , ,

Have any Questions?

Feel free to Get in touch

JVS-ND8164-HJ | 64CH 8HDD H.265 NVR with 4K Support & 80TB Storage

Product Overview

The JVS-ND8164-HJ is a professional 64CH H.265 network video recorder designed for large-scale surveillance systems requiring substantial storage and high-resolution processing capabilities. The JVS-ND8164-HJ supports up to 64 IP cameras with 4K resolution input and output, delivering exceptional video quality for comprehensive monitoring applications. Featuring 8 SATA interfaces supporting up to 10TB each, this NVR offers massive 80TB total storage capacity with RAID 0, 1, 5, 6, and 10 support for data protection and performance optimization. With advanced H.265/H.264+ compression technology, dual network interfaces, and 400Mbps bandwidth handling, the JVS-ND8164-HJ ensures efficient operation with multiple high-resolution cameras. The system includes 16 alarm inputs, 4 alarm outputs, RS485 PTZ control, and comprehensive network functionality including ONVIF 2.4 compliance.

Specifications
Video & Audio
IP Camera Input 64 Channel
Video Output HDMI: 4K@60Hz/ 4K@30Hz/ 2K@60Hz/ 2K@30Hz/ 1920×1080/ 1440×900/ 1280×1024/ 1280×720/ 1024×768
VGA: 1920×1080/ 1440×900/ 1280×1024/ 1280×720/ 1024×768
Max Decoding 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/720p
Audio In & Out Support
Decoding Format Decoding Format H.265/H.264/H.264+
Bandwidth I/O 400Mbps/320Mbps
Storage
SATA 8x SATA Interface
Capacity Up to 10TB Max.
File Format Log: *.txt/ Picture: *.JPG/ Video: *.mp4
Backup Mode USB 3.0 Device FAT32/ NTFS/ exFAT
Raid RAID0, RAID1, RAID5, RAID6 and RAID10
Video
Video Playback Auto/ Timing/ Alarm/ Motion Detection/ Intelligent Analysis
Sync Playback 4CH 4K/9CH 5.0MP/ 11CH 4.0MP/ 13CH 3.0MP/

16CH 2.0MP
Search Mode Channel Number/ Recording Type/ Date
Network
Ethernet 100/1000Mbps
Max. Remote Channels 128 LAN/ 64 WAN
Network Function PPPoE , NTP, UPnP
Interoperability ONVIF 2.4, CloudSEE 2.0
Smart Phone iPhone, Android
Hardware
Network Interface 2x RJ45
USB Interface 3x USB2.0, 1xUSB3.0
PTZ Interface RS485
Controlling Device Mouse
Alarm Input 16CH
Alarm Output 4CH
Others Smart Search option, Support VCA Search, Connectable to the Third-Party Network Camera
Special
Multi-Screen Display 1/ 4/ 5/ 6 up to 64
Alarm Method Buzzer, Push to App, Email Alarm, External Alarm
Digital Zoom Support
General
Power Supply ATX
Consumption ≤ 30 W (Without HDD)
Working Temperature -10°C ~ 55°C
Working Humidity 10% ~ 90%
Dimensions 445×90.5×430(mm)
Weight ≤ 8Kg (Without HDD)

JVS-ND8164-HJ.pdf
